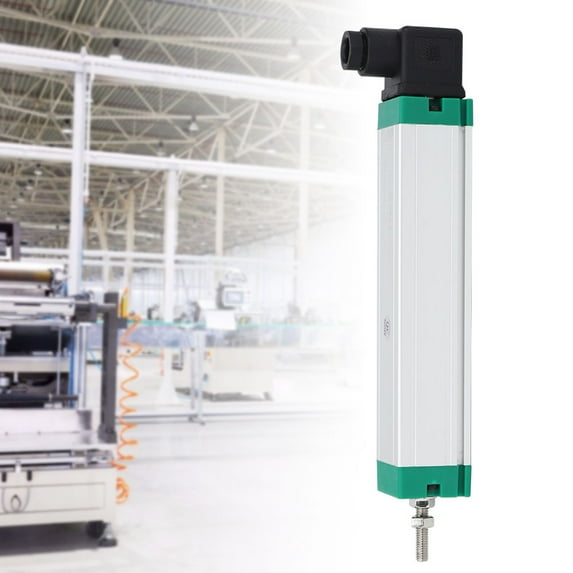

Injection Molding Machine Electronic Ruler Pull Rod Type Displacement Sensor TransducerKTC-100

Feature: 1. High compatibility, potentiometer principle, 0-100% given input voltage (changes with displacement). 2. Adopt plug type, convenient and practical, no noise output, smooth engineering rod. 3. Using for Hessman plug to resist oxidation, exquisite workmanship. 4. Reduce signal transmission loss, high-definition sound quality, compatible with all devices. 5. The highest IP67 protection level, good protection effect. Specification: Item Type: Displacement Sensor Optional Models: KTC-100, KTC-300 Material: Stainless steel Electrical Stroke: Range + 3mm Resolution / Resolution: Infinite uninterrupted analysis Repeatability: 0.01mm Normal Working Current Of Sliding Brush: ≤10μA The Maximum Current Of The Sliding Brush When Causing The Fault: 10mA Maximum Allowable Working Voltage: 42V Effective Temperature Coefficient Ratio Of Output Voltage To Input Voltage: Usually 5ppm / K Insulation Resistance (500VDC, 50Hz): ≥10MΩ Insulation Strength (500VAC, 50Hz): ≤100μA Shell Length (A): Range + 78.5mm Mechanical Stroke (B): Range + 8mm Maximum Load Of Pull Rod: 50KG Work Force: Horizontal direction Vertical direction≤10N Vibration Resistance Standard: 5 ... 2000Hz, Amax = 0.8mm, amax = 20g Shock Resistance Standard: 50g, 11ms Operating Temperature Range: -60 ... + 150 ℃ Life: > 100 × 10 ^ 6 times Maximum Operating Speed: 10m / S, maximum operating acceleration 10m / s² Protection Level: Highest IP67 (DIN40500 / IEC529) Package List: 1 x Displacement Sensor 1 x Plug 3 x Accessories 4 x Screw
