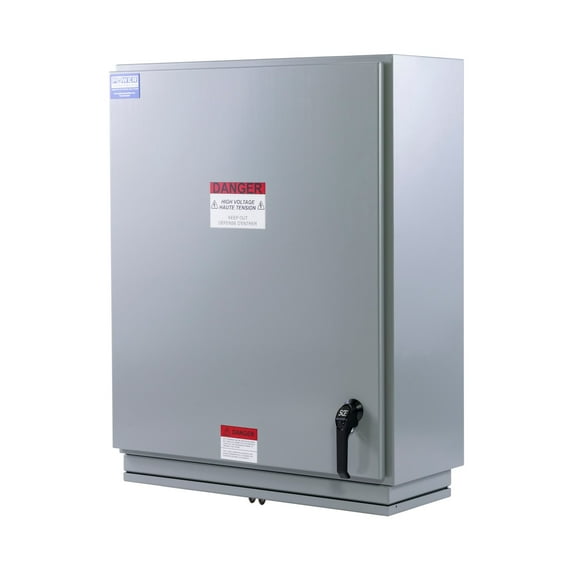

Power Assemblies Compact Generator Docking Station, 400 Amp, 277/480 Volts -3 Phase 4 Wire, NEMA 4/12 CAM Lock Input, Series 16 CAM connectors, Color Code BRN/ORG/YEL/WHT/GRN, Portable Power Solution

Power Assemblies has developed a high quality low cost generator docking station with NEMA 4/12 CAM lock quick connection system. The generator connection box is used in conjunction with a transfer switch to provide a convenient, quick connect option for emergency power. These enclosures are available on Standard, Compact and Mini size, and are capable of handling a range of 400 Amps to 2000 Amps. Generator connection boxes are commonly used in hospital, data centers, emergency situations and airports. These lockable, watertight enclosures are cULus Listed – UL1008 and available is many color coded configurations to fit customers and buildings requirements.
Available Sizes:
Mini: 24_h x 20_ w x 8_ d
Compact: 36_h x 30_ w x 12_ d
Standard: 54_h x 35.7_ w x 17.07_d
Available Amp: 400A, 800A, 1200A, 1600A, 2000A
Power Input: Series 16 CAMs
Power Output:Silver-Plated Copper Bus Bar
Mount Details: Wall Mount
Enclosure Material: 14 Ga. Carbon Steel
Enclosure Finish: ANSI 61 Gray
Enclosure Type: NEMA 4/12
Max. Voltage: Up to 600 VAC (120/208V Y, 250V D, 277-480V Y, 480V D, 347Y/600V,600V)
Phases/Wires Available: 3 Phases and 3 Wires or 3 Phases and 4 Wires.
Color Codes: Brown: BRN / Orange: ORG / Yellow: YEL / White: WHT / Green: GRN
Generator Docking Station shall be covered by a manufacturer’s warranty for a period of one (1) year from date of shipment from the manufacturer.


**PLEASE NOTE: The Pictures shown are for illustration purposes only. Actual product may vary based on the specification selected.
