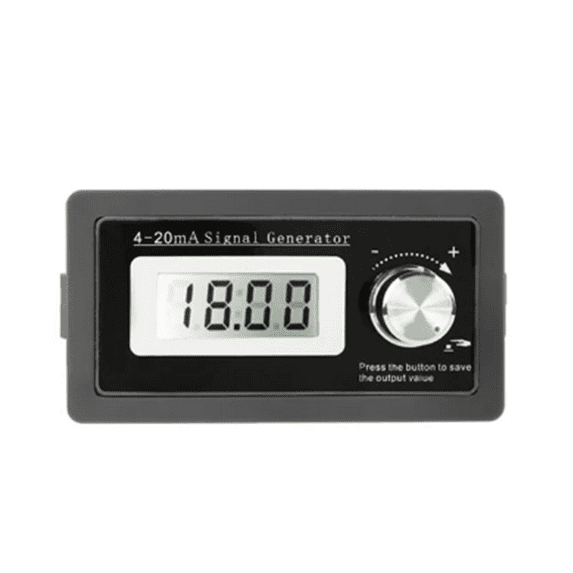

New 2Wire 420MA Current Signal Generator PanelMounted Current Loop Generator 4 to 20MA Simulator High Precision

1. passive two-wire 4-20MA current loop, the wiring is fully compatible with 2, 3, 4 wire system
2. 0.01 precision, liquid crystal display, encoder knob, terminal block is not positive or negative
3. can set the coarse and fine adjustment mode, the number of turns can be set
4. can set the output range: 4-20MA (control equipment) / 3-21MA (debug signal)
5. can be set display mode: actual current / 100.0% / 50.0HZ

linear output, can be calibrated
can be set to automatically store the output value
programmable automatic curve output cycle 1-9 segment
can set 2-9 points to quickly adjust the output, the knob directly calls these currents
Power supply voltage:15V-30V
Output range:4-20mA/3-21mA
Display mode:Real Current / 0-100.0%/ 0-50.0Hz
Sampling resistance:Less than 500 ohms
Output accuracy:±0.5%;Display accuracy:0.01
Colour:As Shown
Material:plastic

Package Contents:
1 * Signal Generator

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
