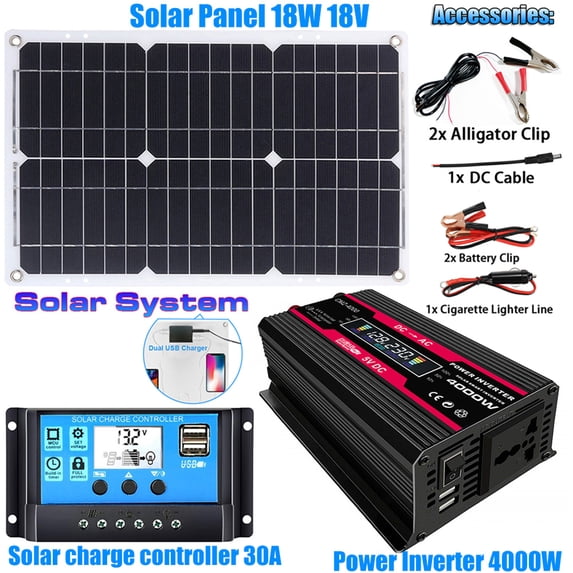

DC12-AC220V 4000W Solar Panel Kit Complete Solar Power Generator 30A Home Grid System

Feature:
*[MCU LCD Display] Car inverter has the-control unit LCD realizes the exchange of human-machine information, and can know the working status of the inverter in real times, including show real times of input voltage, output voltage, output frequency, battery power, load, Power on/off indicator and other information.
*[High Temperature Indicator in LCD display] It is a powerful display reminder function. When high temperature over 45 Celsius, the symbol of temperature will light up and show red color, plus audible alarm then shutdown.
*[Show Battery Power in LCD display] There is a battery Level Bar in the LCD Screen, it can show you the real times power of battery. Green means full power, yellow means half level, and red means low power of your battery, you have to recharge the battery at once.
*[High/Voltage in LCD display](1) When high voltage, the symbol of v lights up(Red), battery level bar flickers, input voltage display shows 15V or more, plus audible alarm then shutdown.(2) When low voltage, the symbol of v lights up(Red), battery level bar flickers, input voltage display shows 10.5V or less, plus audible alarm then shutdown.
*[Power on/off indicator in LCD display] The symbol show green and mean working normal, show red and faulty, without output.
*[Over load& Short circuit in LCD display] When overload, the symbol( like a balance scale) will light up(Red), load level bar flickers, no outputs audible alarm. When Short circuit, the symbol( like a balance scale) will light up(Red), load level bar flickers, no outputs audible alarm.
*[Fast Charging Dual USB ports] 1 AC Outlets and two usb ports can offer fast charging for Mobile phones, computers, laptop,breast pump, Nebulizer,Razors, rescue device,equipment etc,can be as a Power Supply.Dual USB ports can charge most phones and tablets simultaneously(Max 4.1A), while AC outlets great for laptop, drone, fan, camera, CPAP machine, game console, for kindle, TV, DVD players, lights, RV,and other electronic devices.
*[Lightweight design&] Lightweight and compact, for vacations, camping and work trips. It can be plugged into almost any 12V power output vehicle, providing charging opportunities anywhere.
*[Wide application] This power inverter for car continuous power: 300W, surge power: 1000W. Widely used in camping, road trips, outdoor work, power failure, etc.-standard 110V AC power outlets can better connect multiple appliances.

Specification:
1. Solar Panel 18W:
Power: 18W± 5%
Size: 420x280x2.5mm
DC outout: 12V/1.5A
USB output: 5V/1.7A
Weight:0.7kg
Type: Mono Solar Panel
Material: Aluminum substrate
Output accessories: DC cable+ DC for alligator clip
2. Power Inverter 4000W:
Input voltage: DC 10.5V~15V, (When the battery voltage is lower than 10.5V, the inverter is low voltage protection, when the battery voltage is higher than 15V, the inverter high voltage protection)
Output voltage: AC 220V
Output frequency is: 50Hz
Peaks Power: 4000W
Rated power:300W(Please make sure that the total rated power of the connected devices is≤ 300W).
Output waveform: Modified sine wave
Product Size for inverter: 200X112X56mm
3. 100A 12V 24V Automatic Solar Charge Controller PWM with LCD Controller and Dual USB
Charge Current: 100A
Product Size: 148.5x78x35mm
Voltage: DC 12V/ 24V Auto intelligent conversion
Display: LCD digital display
USB Charger Ports: Dual USB 5V 2.1A
Operating Temperature:-35~+60
Max Solar Input: 12V battery, the highest 23V
Float Charge: 13.7V(defaul, adjustable)
Discharge Stop: 10.7V(defaul, adjustable)
Discharge Reconnect: 12.6V(defaul, adjustable)
Charge Reconnect: 13V
Voltage of Open Light: Solar Panel 8V(Light lights delay)
Voltage of Close Light: Solar Panel 8V(Light off delay)
USB Output: 2 way USB output, 5V/2.5A(MAX)
* Fitment=YES

Package included:
1 x Power Inverter 2 x Battery Clip 1 x （） 1 x User Manual 1 x Solar Panel 18W 18V 1 x Solar Charge Controller 100A 12V/24V
