Transistor Tester,Lcr-mf9 1.8'' Tft Resistor Test Meter Test Meter Mosfet Display Tester Diode Tft Lcd Display Diode Resistor Test Mosfet Npn Pnp Npn Pnp Mos 1.8'' Tft Lcd Meter Mosfet Npn

Hero image 0 of Transistor Tester,Lcr-mf9 1.8'' Tft Resistor Test Meter Test Meter Mosfet Display Tester Diode Tft Lcd Display Diode Resistor Test Mosfet Npn Pnp Npn Pnp Mos 1.8'' Tft Lcd Meter Mosfet Npn, 0 of 6

Carevas

Transistor Tester,Lcr-mf9 1.8'' Tft Resistor Test Meter Test Meter Mosfet Display Tester Diode Tft Lcd Display Diode Resistor Test Mosfet Npn Pnp Npn Pnp Mos 1.8'' Tft Lcd Meter Mosfet Npn

(No ratings yet)

Key item features

High test speed, valid component test: in 2 seconds (except in the larger capacitors, large capacitance measurement also need a longer time).
Can detect infrared code (support NEC format infrared remote control).
Can distinguish between depletion type and enhancement type MOSFETs.
Power consumption off mode: less than 20 nA.
Measurement of gate threshold voltage and gate capacitance of MOSFETs.

Specs

Transistor type
NPN
Model
E26385
Brand
Carevas
Volts
3.7 V
Piece count
1
Assembled product height
1.06 in

Current price is $23.48

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

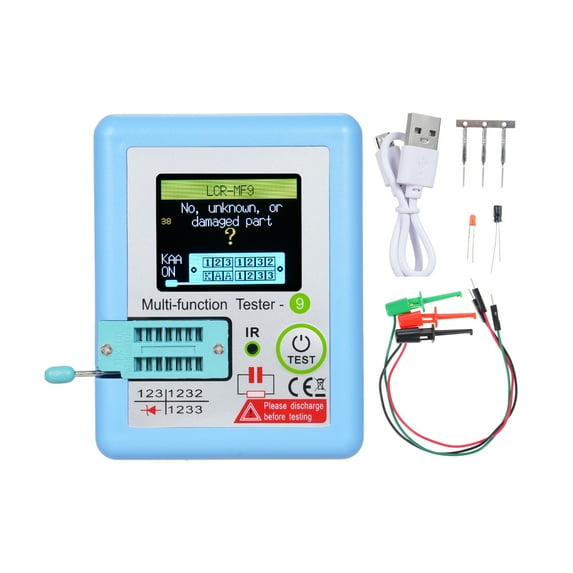

LCR-MF9 1.8'' TFT LCD Display Multi-meter Transistor Tester Diode Triode Capacitor Resistor Test Meter MOSFET NPN PNP Triac MOS

3 * Test Cable

Specifications:

Material: ABS

Package List:

1 * Transistor Tester

Inductance: 0.01mH~20H

Item Size: 90 * 70 * 27mm / 3.54 * 2.76 * 1.06in

One button operation, on test.

High test speed, valid component test: in 2 seconds (except in larger capacitors, large capacitance measurement also need a longer time).

1 * USB Cable

Equipped with a calibration needle, calibrated to test small resistors more accurately.

Capacitance: 25pF~100mF

Display using TFT 1.8-inch color screen display, graphical display of various parameters.

Can distinguish between depletion type and enhancement type MOSFETs.

Built-in 300mAh 3.7V battery, can be rechargeable.

Resistance below 2100 Ohm will measure inductance, inductance below 10UH will only measure resistance.

Automatically detects components such as NPN and PNP transistors, N-channel and P-channel MOSFETs, IGBT diodes (including double diodes), thyristors, transistors, resistors and capacitors.

consumption off mode: less than 20 nA.

Package Size: 17 * 12 * 2.7cm / 6.69 * 4.72 * 1.06in

Item Weight: 84g / 2.96oz

Model: LCR-MF9

Resistance: 0.01~50M

Capacitance higher than 10UF can display VOSS and ESR.

Detects amplification factor and base of transistors, MOSFET diodes, etc. Determines forward bias voltage of emitter transistors.

Package Weight: 102g / 3.6oz

Battery: 0.1~4.5V

Measurement of gate threshold voltage and gate capacitance of MOSFETs.

Can detect infrared code (support NEC format infrared remote control).

Supports measurement and display of two resistors with a resolution of 0.1 ohm and a maximum measurement value of 50 megohms.

Automatic shutdown function, saving battery energy, improve battery .

Automatically test pin layout of component and graphically display it on color screen.

High test speed, valid component test: in 2 seconds (except in the larger capacitors, large capacitance measurement also need a longer time).
Can detect infrared code (support NEC format infrared remote control).
Can distinguish between depletion type and enhancement type MOSFETs.
Power consumption off mode: less than 20 nA.
Measurement of gate threshold voltage and gate capacitance of MOSFETs.
