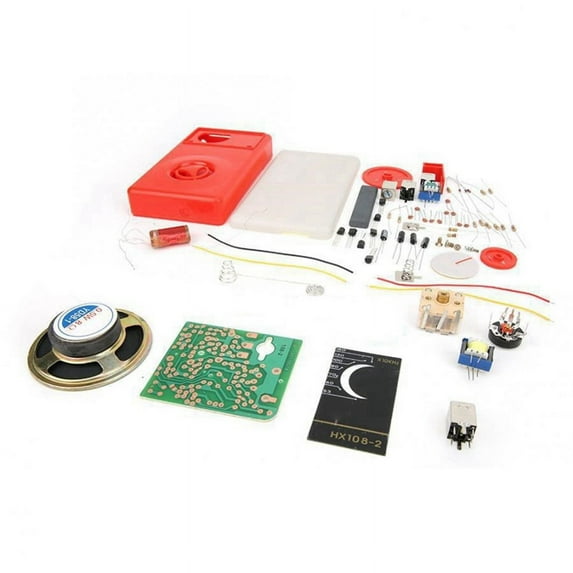

Hero image 0 of Winyuyby 1 Set 7 Tube AM Radio Electronic DIY Kit Electronic Learning Kit HX108-2 DIY Kit Without Battery, 0 of 8

Unbranded

Winyuyby 1 Set 7 Tube AM Radio Electronic DIY Kit Electronic Learning Kit HX108-2 DIY Kit Without Battery

(No ratings yet)

Key item features

Core Circuitry: Features a secondary intermediate standard circuit, precisely adjusted to 465KHz, with integrated IC test ports at all circuit levels for easy monitoring.
Transistor Configuration: Comprises seven triodes, including V1 for frequency conversion, V2 and V3 as middle discharge tubes, V4 for detection, V5 as a low-frequency preamplifier, and V6 and V7 as low-frequency power amplifiers.
Operational Specifications: Offers a frequency range of 525-1605KHz and an output power of 100MW, powered by a 3V battery (not included).
Audio Output: Equipped with a 57mm diameter speaker, rated at 8 ohms, for clear sound reproduction.
Kit Components: Includes a PCB, electronic components, and plastic parts, providing a complete set for assembly.
Assembly Attributes: Designed for easy assembly and fine workmanship, ensuring a long service life for the finished radio.

Generated by AI

Specs

Radio signal type
Analog Radio
Portable radio type
Portable AM/FM Radios
Power type
Battery
Brand
Unbranded
Resists water
N
Color
Multicolor

Current price is $10.70

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Columbus, 43215

Arrives between May 15 - May 19

Sold and shipped by Home Outdoors Company

4.077551020408163 stars out of 5, based on 245 seller reviews(4.1)

Report an issue with this seller

Free 30-day returns

More seller options (1)

Starting from $11.77

About this item

Product details

and high quality
Frequency Range: 525-1605KHz
Output Power: 100MW
Power Supply: 3V ( battery) (Not included)
Circuit introduction: the main properties of the 108-2 7 transistor radio frequency range: 525~1605KHZ
Speaker: . 57mm diameter, 8 ohm
Different batches may have different appearance, which does not affect use.
Fine workmanship.
Easy to assemble.
Long service life.
Colour:multicolor
Material:PCB+electronic components+plastic

Package Contents:
1 set x Radio Electronic DIY Kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

Secondary intermediate standard circuit. Has been adjusted in the 465KHz. Circuit at all levels have Ic test port. The whole machine contains 7 triodes, so it is called a 7-tube radio. Among them, the triode V1 is the frequency conversion tube, the V2 and V3 are the middle discharge tubes, the V4 is the detection tube, the V5 is the low frequency preamplifier tube, and the V6 and V7 are the low frequency power amplifier tubes.
Secondary intermediate standard circuit.
Has been adjusted in the 465KHz.
