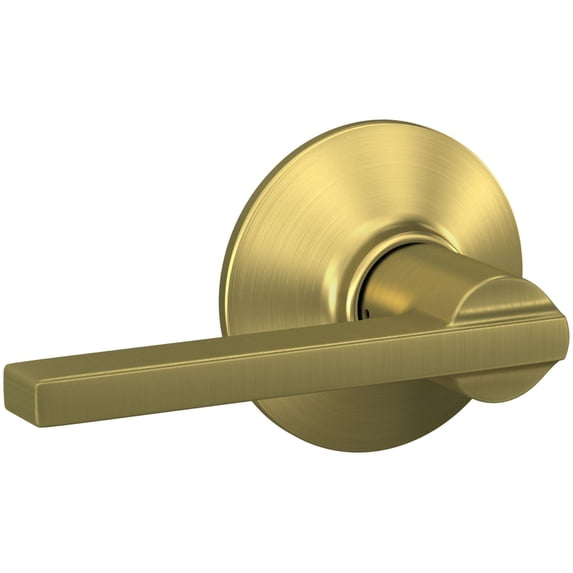

Schlage F10LAT608 Latitude Passage Door Lever Set - Brass

Passage Feature: Schlage Passage Door Lever Sets have no locking feature and swing freely on both sides. These levers are perfect for a hallway or closet where a lock is not necessary. Passage levers can also be used in conjunction with a deadbolt to secure an entry or back door. SCHLAGE works for you: Adjusts to fit all standard door preparations. Easy installation makes it a one-person project. Interior screws are exposed ANSI/BHMA A156.2, 2011, Grade 2 Reversible lever allows use as right and left levers Face plates part 16-080: Supplied with 1/4 inch round corner plates and plates Entry Fronts Part 16-080: Supplied with 1/4-Inch Round Corner Strike Plates Part 16-080. 0-027: Supplied with a round strike with dimensions of 2-1/4" x 1-5/8" for mechanical life and finish finish does not include oil rubbed bronze because it is a live finish and will patina over time ADA Compliant Specifications: Depth: Adjustable to 2-3/8" or 2-3/4" Cross Diameter: 2-1/8" Bore Diameter: 7/8" Door Thickness: 1-3/8 " 8" or 1-3/4" Manipulation: Left, Right, Reversible Lever Length: 4-1/2" Projection: 2-1/4" Product Weight: 1.55 lbs Additional Features: F10-LAT this model: passage lever F40-LAT: privacy lever F51-LAT: keyed entry lever F170-LAT: single mannequin lever
