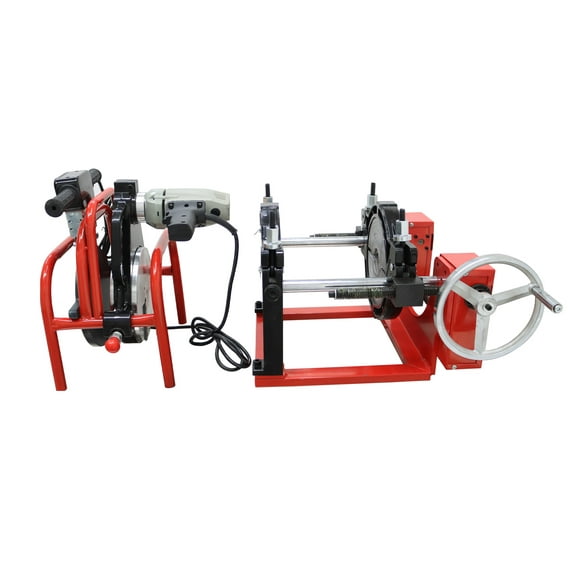

Screw Style 2 Clamps Pipe Fusion Welder Butt Fusion Welding Machine Hand-operated Pipe Hot Melt Machine
(No ratings yet)
Key item features
- Lengthened and thickened frame, better bearing and more stable.
- Widen and thickened clamp, more stable during welding.
- The support of heating plate and milling cutter is provided as a bonus. After use, the heating plate can be placed to prevent burns.
- Screw hand wheel, automatically pressure-holding, the screw will not go back,easy to adjust the distance between clamps.
- Screw hand wheel, automatically pressure-holding, the screw will not go back,easy to adjust the distance between clamps.
Specs
- Volts110 V
- BrandTechtongda
- Weight81.4 lb
- Assembled product dimensions (l x w x h)17.90 x 17.30 x 13.00 Inches
- ColorRed
- Model145046-EezY
Current price is USD$639.00
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Columbus, 43215
Arrives by Tue, May 12
|
Sold and shipped by EEZGLOBAL INC
4.258461538461538 stars out of 5, based on 325 seller reviews(4.3)325 seller reviews
Free 30-day returns
About this item
Product details
Description：
Manually Operated butt fusion welding machine is suitable for PE and PP pipes and fittings. High quality design and construction provides an excellent machine for welding both on the worksite and in the factory. The use of high quality Aluminum casting allows for lower weight without compromising strength and performance. Screw design achieves the automatically pressure-holding function and save your power.
Specifications:
Model No.: 2.48-7.87"(63-200MM) 2 rings manual
Material: Aluminum alloy casting, 45# steel
Welding level(Φ)outer dia: 2.48" (63mm), 2.95" (75mm), 3.54" (90mm), 4.33" (110mm), 1.92" (125mm), 5.51" (140mm), 6.30" (160mm),180 mm (7.09")、200mm(7.87")
Docking deviation: ≤0.3mm
Power of Heater: 1.1KW/110V
Power of Milling Cutter: 1.5KW/110V
Working temperature: 0-300°c
Temperature deviation: ±5°c
Environment temperature: -5°c - 40°c
Time required to reach soldering temperature: <20min
Materials can be welded: PE PPR PB PVDF
Item included(145046):
Techtongda 110V Screw style 2 Clamps Pipe Fusion Welder
Manually Operated butt fusion welding machine is suitable for PE and PP pipes and fittings. High quality design and construction provides an excellent machine for welding both on the worksite and in the factory. The use of high quality Aluminum casting allows for lower weight without compromising strength and performance. Screw design achieves the automatically pressure-holding function and save your power.
Specifications:
Model No.: 2.48-7.87"(63-200MM) 2 rings manual
Material: Aluminum alloy casting, 45# steel
Welding level(Φ)outer dia: 2.48" (63mm), 2.95" (75mm), 3.54" (90mm), 4.33" (110mm), 1.92" (125mm), 5.51" (140mm), 6.30" (160mm),180 mm (7.09")、200mm(7.87")
Docking deviation: ≤0.3mm
Power of Heater: 1.1KW/110V
Power of Milling Cutter: 1.5KW/110V
Working temperature: 0-300°c
Temperature deviation: ±5°c
Environment temperature: -5°c - 40°c
Time required to reach soldering temperature: <20min
Materials can be welded: PE PPR PB PVDF
Item included(145046):
Techtongda 110V Screw style 2 Clamps Pipe Fusion Welder
- Lengthened and thickened frame, better bearing and more stable.
- Widen and thickened clamp, more stable during welding.
- The support of heating plate and milling cutter is provided as a bonus. After use, the heating plate can be placed to prevent burns.
- Screw hand wheel, automatically pressure-holding, the screw will not go back,easy to adjust the distance between clamps.
- Screw hand wheel, automatically pressure-holding, the screw will not go back,easy to adjust the distance between clamps.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Volts
110 V
Brand
Techtongda
Weight
81.4 lb
Assembled product dimensions (l x w x h)
17.90 x 17.30 x 13.00 Inches
Warranty
Warranty information
It is refundable within one month after delivery and accessories are provided free of charge. 6 months' warranty for the machine, not for the consumables.We stand behind our products all the item, so even if your warranty period has expired, you can still seek for service or technical support from us with low cost. We do not bear the return freight for returns other than product quality.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
