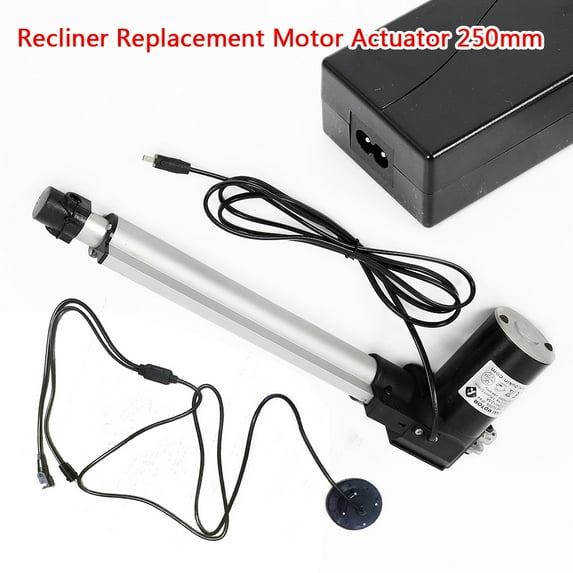

Miumaeov Recliner Replacement Motor Actuator DC 24V Power Recliner Lift Linear Replacement Actuator Motor Permanent Kit

Specification:

• Product: Electric Recliner Motor Actuator
• Stroke length: 250mm
• Permanent magnet DC motor drive
• Voltage: 24VDC
• Maximum push/pull: 100KG/100KG
• Minimum installation size (the distance between the two holes before and after the push rod is returned): L=S (stroke) +175mm;
• The distance between the push rod and the front and rear holes is extended to = 2XS (stroke) + 175mm
• No-load speed: maximum 40mm/S
• Rated load rate: 5mm/S (600KG)-40mm/S (30KG)
• Ambient temperature: -5℃ + + 50℃
• Standard protection level: IP44
• Unfolded size: 250mm + 175mm = 425mm
• Extended dimension: 250mm + 175mm + 250mm = 675mm

Features:

• 24VDC permanent magnet motor
• Push force up to 1000 N and pull force up to 1000 N.
• Elegant and compact design with small installation size
• Built-in limit switch (not adjustable)
• aluminum outer layer
• Tube Ø30 mm
• Aluminum inner tube ØØ24mm
• steel back clamp
• Standard protection class, IP44
• Noise level 48 dB (A), actuator not loaded.
• Duty cycle, 10% maximum or 2 minutes of continuous use, then 18 minutes of no use.

Options:

• Standard stroke, 25-800 mm, can be designed according to customer requirements.
• No-load speed, 6.5mm-45mm/s
• Rated load speed, 4.5mm-40mm/s

Application:

• This electric recliner chair lift linear actuator motor will open and close the lift mechanism of an electric recliner or chair lift. Connects to the Motor Handheld via a 5-pin connector and to a power transformer via a standard 2-pin connector.

Package:

• 1 x Recliner Replacement Motor Actuator
• 1 x 8 Suffix AC Cord
• 1 x DC cable
• 1 power adapter
• 1 x Embedded Hand Control
