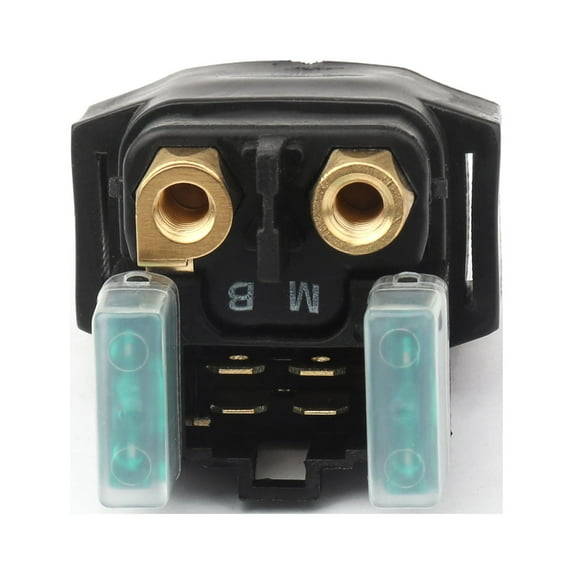

Motor Genic Starter Relay Solenoid For Yamaha ATV YFZ450 YFZ 450 YZF R1 1000 FJR 1300 XV

NEW Starter Relay Solenoid 12v For Yamaha ATV YFZ450 2004-2009 XV1900 Road/Stratoliner 2006-2014 XV1900 Raider 2008-2017

FEATURES:
Aftermarket Starter Relay Solenoid.
In most cases this is a direct bolt on part.
HOWEVER you made need to modify the mounting position and the wiring connections to allow it to work on your Motorcycle.
Rubber shell protection against leakage damage.
Stable characteristics high reliability.
High class quality and very durable.
Mounting bracket NOT included Installation Instruction NOT Included.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Color: Same As Picture Show
Material: Plastic & Metal
OEM Replacement Part Number:
5JW-81940-00
5JW-81940-02
4DN-81940-00
4DN-81940-10
4DN-81940-12
4YR-81940-00
4YR-81940-01
4YR-81940-02

FITMENT:
For Yamaha FJR1300 2003-2005/2006-2007
For Yamaha FZS 600 Fazer 600 1998-2003
For Yamaha FZS1000 Fazer 2001-2005
For Yamaha FZS1000 FZ1 FZ1S FZS 1000 2001-2005
For Yamaha FZS1000 S Fazer 2003-2005
For Yamaha RS Viking 2008-2010
For Yamaha RS90 Nytro 2006-2007
For Yamaha RSG90L Rage 2005-2007
For Yamaha RST90 90 Venture 2006-2010
For Yamaha RX-1 RX1 2003-2005
For Yamaha TDM900 2005-2013
For Yamaha VK VK10L Proffesiona 2006-2008
For Yamaha VP 250 X-City 2007-2014
For Yamaha XT250 XT250DC / XT250D 2005-2018
For Yamaha XTZ1200 XT1200Z Super Tenere 2010-2017
For Yamaha XTZ1200 XT1200ZE Super Tenere ES 2014-2017
For Yamaha XV17 Roadstar Warrior Road Star 2002-2009
For Yamaha XV1700 Road Star Warrior 2002-2007
For Yamaha XV1700 Road Star Warrior Roadstar 2002-2009
For Yamaha XV1900 Stratoliner Roadliner 2006-2010
For Yamaha XV1900 XV19 XV 1900 Raider 2006-2010
For Yamaha XVS11 1100 Custom 2004-2009
For Yamaha XVS11 1100 Midnight Silverado 2004-2009
For Yamaha XVS1100 1100 Classic 1999-2009
For Yamaha XVS1100 1100 V-STAR 1999-2009
For Yamaha YFZ450 YFZ45 2004-2008
For Yamaha YP125 R X-Max 2006-2009
For Yamaha YX600 1995-2007
For Yamaha YZF1000 1998-2001
For Yamaha YZF600 1995-2007
For Yamaha YZF-R1 1998-2001
For Yamaha YZF-R1 2002-2006 2009
For Yamaha YZF-R6 1999-2002
For Yamaha YZF-R7 750 1999-2000

PACKAGE INCLUDED:
1x Starter Relay Solenoid
Installation Instruction NOT Included

TESTING PROCEDURE:
Make SURE the Motorcycle is in NEUTRAL!!! Even with the ignition OFF!
Before pulling an old solenoid off a Motorcycle you can test it.
Applying 12 volts to the two wires inside the plastic connector the solenoid is polarity sensitive.
Applying 12 volts in the wrong polarity doesn't hurt the solenoid it simply won't work.
When the 12 volts are applied to the two small wires correctly:
If the starter cranks the solenoid the battery and the starter are all good.
If the solenoid makes an audible click sound but your starter doesn't crank the solenoid is good.

NOTE:
This is an Aftermarket Replacement Part BUT NOT Genuine.
This may or may not be a direct fit for the Motorcycles listed below!
However given the cost of an OEM replacement we think it's well worth the time you may spend installing it.
See pictures for additional measurements to ensure this is the right starter relay for you!
