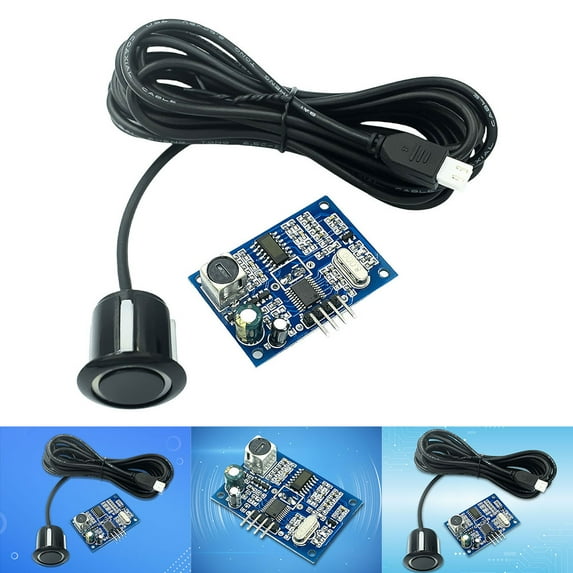

husxh JSN-SR04T Waterproof Integrated Distance Measuring Transducer Sensor with Probe Cable Ultrasonic Distance Sensor Detecting Distance Sensor for Arduino

Specification:

Origin: Mainland China

Type: Module

Condition: New

Electrical parameters: JSN-SRO4T

Working voltage: DC 5V

Static working current: 5mA

Total working current: 30mA

Acoustic emission frequency: 40KHz

Distance measurement: 5m

Blind spot: 25cm

Wiring method:+5V (positive pole of power supply)

Trig (control end) RX

Echo (receiving end) TX

GND (negative pole of power supply)

Module size: 41mm * 28.5mm

Resolution: approximately 0.5cm

Angle: less than 50 degrees

Working temperature: -10-70 ℃

Storage temperature: -20-80 ℃

Weight: 42g with lead wire

Product application:

1. Horizontal ranging;

2. Obstacle avoidance and automatic control;

3. Object approaching and presence detection

4. Traffic control;

5. Security and industrial control;

6. Artificial intelligence, teaching and research

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

Included:

1 x JSN-SR04T Integrated Ultrasonic Ranging Module
