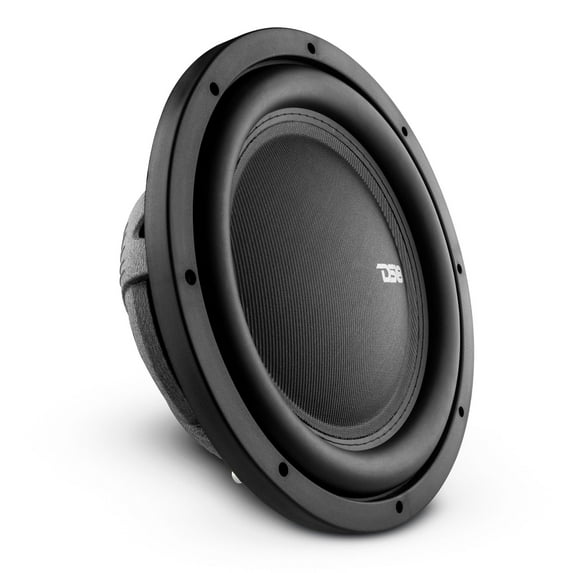

DS18 12 inch Shallow Subwoofer 1600 watts Dual 2 Ohm IXS-12.2D

DS18 12" Car Shallow Subwoofer 1600 Watts Dual 2 Ohm IXS12.2D



Continuing the tradition of our very popular shallow mount subwoofers, we now have the IXS line which is the successor to our best selling SW slim subwoofer line. We took the SW line and made it even beefier for more bass. The IXS comes in both 10 and 12 inch. Also they both have multiple voice coil options to get the most from your amplifier. These subs are perfect for the audiophile that wants a lot of bass but does not have much space for a full sized subwoofer. With these you can get that loud thump without having to sacrifice a lot of room.



Highlights



IXS series was made to produce more bass than other shallow mount subs of it rating in ported or sealed boxes.
Large surround with flexible spider packs will help the CCA voice coil teach maximum xmax producing full and deep bass with a up to spec box.
Shallow mount size will let you fit this sub in compact places and requires less box space than other subs its size giving you many options in which to place it.



This listing includes

(1) IXS12.2D DS18 Shallow Subwoofer 2 Ohm DVC



Specifications:



Nominal Diameter 12

Nominal Impedance 2+2 ohms

RMS Power Handling 800W

MAX Power Handling 1600W

Sensitivity (1w/1m) 85.1 dB

Frequency Response 20-600Hz

Recommended Lo Pass Crossover 80 Hz



Motor



VC Diameter 2.5 / 63.5mm

VC Former Material Aluminum

Winding Material Copper

Cone Material Paper

Dust Cap Material Fiberglass

Surround Material Stitched Rubber

Basket Material Aluminum

Basket Color Corrugated Black

Magnet Material Ferrite

Magnet Weight 62 Oz

Displacement Volume 0.93L



Thiele & Small Parameters T/S:



Equivelant Vol Vas 38L

Excursion (one way) Xmax 10.3 mm

Free Air Resonance Fs 33Hz

Mechanical Factor Qms. 4.563

Electrical Factor Qes 0.809

Total Factor Qts. 0.687

Moving Mass Mms. 182.6

Compliance Cms. 112.7 mm/N

Bl Factor BL 13.38

VC Inductance Le. 14.72 mH

Diaphragm Area Sd. 494.81 cm2

Dc Resistance Re. 1.60+1.6 ohms

Efficiency Bandwidth Product EBP. 36.5



Measurements



Overall Diameter 12.6" / 320 mm

Overall Depth 5" / 129 mm

Front Mount Baffle Cutout 10.79" / 274 mm

Mouting Depth 4.33" / 110 mm

Motor Diameter 6.3" / 160 mm



Recommended Enclosure



Sealed Internal Volume (minimum) 28L /1 ft3

Sealed Box Output Response (f3) 40 Hz
