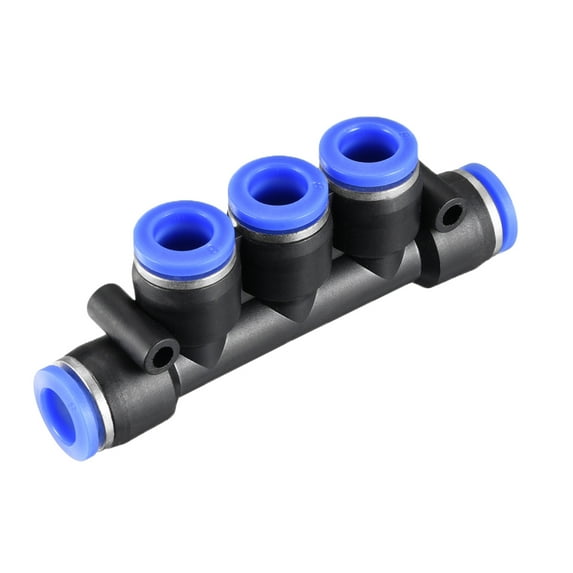

Unique Bargains Push to Connect Fittings 8mm or 5/16” OD Manifold Union Tube Fittings 5pcs

Product Name : Connect Fitting;
Model : PK8
Net Weight : 72g;
Color : Black,Blue
Material : Plastic;
Type: Manifold Union Connector;
Five Tube Size (OD) :8mm = 5/16" ;
Operating Pressure : 0-1MPa;
Operating temperature：-20 - 60 Degree Celsius;
Dimension : 75mm x 30mm x 15mm / 2.95-inch x 1.18-inch x 0.59-inch (L x W x H );

Package Content:
5pcs x Fitting

Description:
1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.
2.A good release cap can withstand greater and stronger pressure without tripping.
3.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
4.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed.
5.Two Small Tube in the side are use for fixed

Mounted:
1.Cut the pipe flat, no slope
2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.
3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.
4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
