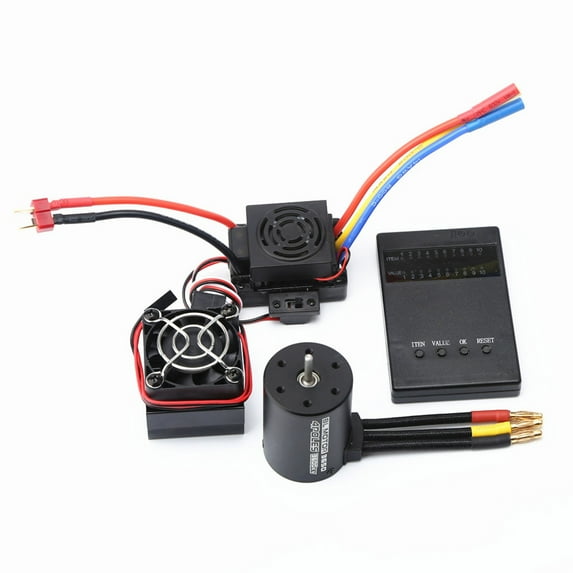

3650 3600KV Brushless Motor with 60A ESC & Programmer Card & Heat Sink Combo Replacement for HSP HPI Wltoys 1:8 / 1:10 Remote Control Car and Boat Part

Hero image 0 of 3650 3600KV Brushless Motor with 60A ESC & Programmer Card & Heat Sink Combo Replacement for HSP HPI Wltoys 1:8 / 1:10 Remote Control Car and Boat Part, 0 of 9

PEPISKY

3650 3600KV Brushless Motor with 60A ESC & Programmer Card & Heat Sink Combo Replacement for HSP HPI Wltoys 1:8 / 1:10 Remote Control Car and Boat Part

(No ratings yet)

Key item features

3.17 5mm shaft diameter,4 pole 12 slot high-torque motor design.
High purity copper windings maximizes efficiency,Precision engineered for maximum energy conversion.
Precision balanced rotor,smoothness for best reliability and maximum RPM.
Mutiple protection features: Low voltage cut-off protection, over-heat protection, throttle signal loss protection,Supports program card to make adjustments.
Enhanced throttle response, excellent acceleration, strong brakes and throttle linearity.

Specs

Toy replacement part & accessory type
Replacement Parts
Brand
PEPISKY
Material
Aluminum alloy
Power type
Battery
Color
Black
Volts
5.8 V

Price when purchased online

Not Available

How do you want your item?

Not available

Report an issue with this seller

About this item

Product details

Specifications:

Item name: 3650 3600KV Brushless Motor

Watts: 900W

Max voltage: <12V

Max Amps: 75A

KV(RPM/Volt): 3600KV

Max RPM: 50000

Diameter: 36mm

Length: 50mm

Shaft length: 15mm

Outer Shaft diameter: 3.175mm

Inner Shaft diameter: 5.00mm

Plug type: 4mm golden banana plug

60A Waterproof ESC Specifications:

Item name: waterproof ESC

Continue current: 60A

Burst current: 320A

Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd

BEC output: 5.8V / 3A

Power supply plugs: T plug male

Motor plugs: 4mm banana plug female

Dimension: 50 * 35 * 34mm / 2.0 * 1.4 * 1.3in (without cables)

Weight: 82g (with cables)

Heat Sink Cover Specification:

It is made of Aluminum Alloy and Plastic combined,with fan cooling and stainless steel protecting net cover

Replacement for 1:10 Remote Control Car 540 3650 3660 3670 Motor Heatsink

motor outdiameter is 36MM can be suitable

Color: Black

Material: Aluminum Alloy, Plastic

Dimension: 46x40x40mm / 1.81x1.57x1.57"(LxWxH)

Cable length: 290mm

Weight: 48.6g

Programmer card :

Low voltage cut off: 3.1V/Cell 2.8V/Cell 3.3V/Cell No cut-off

Start mode:Medium, soft, b

Max brake force: 25%, 50%, 75%, 100%

Max reverse force: 25%, 50%, 75%, 100%

Neutral range: 6%, 9%, 12%, work state

Colour:Red+black

Material:ABS

Size:17 x 9 x 2cm

Package Information:

Package size: 8* 6* 5cm

Package weight: 352g

Gift box package

Package List:

1 * 3650 3600KV Brushless Motor

1 * 60A Waterproof ESC

1 * Heat Sink Cover

1 * Programming Card

3.17 5mm shaft diameter,4 pole 12 slot high-torque motor design.
High purity copper windings maximizes efficiency,Precision engineered for maximum energy conversion.
Precision balanced rotor,smoothness for best reliability and maximum RPM.
Mutiple protection features: Low voltage cut-off protection, over-heat protection, throttle signal loss protection,Supports program card to make adjustments.
Enhanced throttle response, excellent acceleration, strong brakes and throttle linearity.
