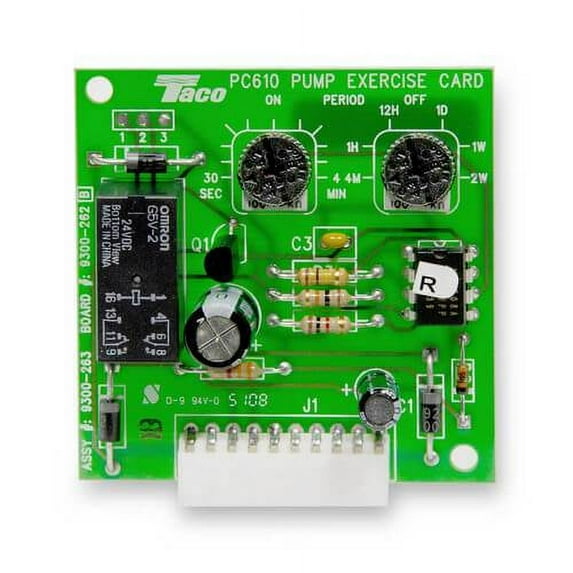

Taco PC610-1 - Universal Timer/Pump Exercise Plug-In Card

Note: PC610-1 is designed for pre EXP-4 models. EXP-4 models have these functions built-in.The Taco Pump Exercise Plug-In Card is a solid state universal timer designed to cycle all the pumps or open all the zone valves that are attached to the Expandable Control(s) at selected time intervals. This minimizes seasonal start-up problems generally associated with harsh water conditions. The control can be configured to reduce the chance of freeze-ups by cycling more often during cold weather months. Bacteria can be minimized in heating systems that utilize domestic hot water heaters as their heat source by systematically circulating the water.

Control: Solid State Universal

Dimensions: 2" x 2"

Connections: Plugs into any PowerPort Slot on any -EXP Control

Power Supply: 24 VAC (Powered by -EXP Control)

Relays: 2 amp

Diagnostics: LED Light

Time Delay: Independently adjustable on/off time delay

  Specifications  ApplicationAccessoryUsed WithTaco ZVC EXP ControlDimensions2" x 2"Connection TypePowerPort Slot on any EXPPower Supply24 VAC (Powered by EXP Control)Time Delay Independently Adjustable On/Off Time Delay
