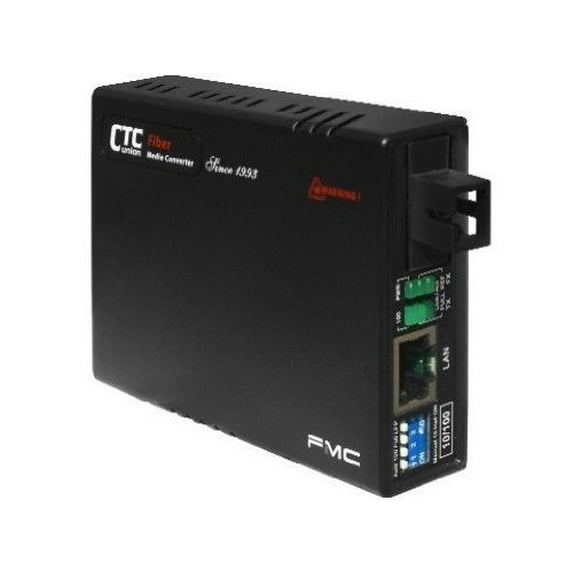

FMC-10-100-SC20B Fast Ethernet WDM single strand BiDirectional fiber media converter, 40Km B type

The FMC media converters are noticed for their simplicity: no management features, guaranteed reliability and extremely affordable cost. Units are available with SC type fiber optic connector. FMC-10-100 WDM family are WDM single strand single-mode (1310nm/1550nm) BiDirectional converters, with auto-negotiation 10/100 and MDI/MDI-X features for the Fast Ethernet RJ45 UTP interface. The FMC-10-100-SC40B WDM model covers operating distance of 40Km and has a type B optical module with Tx:1550nm and Rx:1310nm. The optical power budget is 21dB and diode is Fabry-Perot type. The FMC-10-100-SC40B works ONLY in pair with FMC-10-100-SC40A type media converter. Even without the SNMP management support, FMC series support Link-Fault-Pass through function (LFP - an extremely useful feature to easily debug faulty fiber links), Far-End-Fault function (FEF), acts on a Store-and-Forward switching platform and can carry Jumbo data packets up to 9K size. Used with their compatible FMC-CH08 or FMC-CH17 fiber optic chassis they can be aggregated up to 17 units in a 19 wide and 2U height space only.
