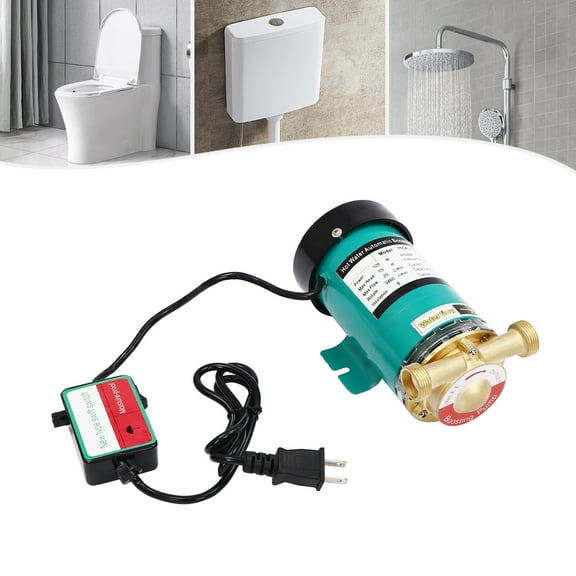

115V 120W Household Shower Booster Pump Automatic Boost Water Pressure Pump IP45

This 120W water pressure booster pump will provide you with an easy solution to the worry of insufficient water pressure in your home. The efficient pressure increase function it brings will make your life more comfortable and convenient. Its simple appearance design is suitable for various home occasions. Besides, it comes with a swift switch, which makes it easy to operate, bringing more convenience and comfort to your home life. It applies to duplex apartments, suburban villas, high-rise buildings with low water pressure, kitchens, bathrooms, water heaters pressurized, household water pressurized, and solar water heaters pressurized. It is suitable for water heater pipe pressurization with insufficient water pressure to prevent the water supply from being cold.

How to Install:

Wrap sealing tape(not included) around the inlet, add a gasket, and screw on the adapter.

Wrap sealing tape(not included) around the outlet, add a gasket, and screw on the water flow switch.

Connect the water inlet to the water pipe(not included).

Connect the water outlet to the water heater water pipe(not included).

After fixing the pump, make sure it is installed correctly, then turn on the power and use it.

Specifications

Color: Green

Model: 15GR-15

Process: Bake Paint

Assembly Required: Yes

Plug Type: US Standard

Motor Type: Copper Core Motor

Material: Copper, Aluminum, Iron, Plastic

Protection Level: IP45

Current: 1.1A

Power: 120W

Voltage: 115V

Frequency: 60Hz

Rotate: 3460r/min

Capacitance: 15μF

Max Head: 15m/49.2ft

Max Flow: 25L/min/396GPH

Max. Water Pressure: 1.5bar/21.7PSI

Insulation: B

Noise: 30-50dB

Max. Water Temperature Range: 80-100℃/176-212℉

Power Cord Length: 1m/3.28ft

Product Height: 19.5cm/7.68inch

Pump Body Diameter: 7.5cm/2.95inch

Total Length: 18.5cm/7.28inch

Connection Size: G1/2"

Outlet Diameter: 3/4"

Packaging Size: 24*20*12cm/9.45*7.87*4.72inch

Gross Weight: 3.7kg/8.16lbs

Net Weight: 3.4kg/7.5lbs

Package Included

1*Water Pressure Booster Pump

1*Water Flow Switch

1*English Manual

Other Needed Accessories

Notes

Water pipes are not included in this package. Before purchasing, please check the water pressure at home. If the water pressure at home is greater than the booster pump, the boosting effect will not be achieved.

When the pump leaves the factory, a small amount of water may remain in the pump. This is due to strict tests on the pump to ensure quality and meet the testing standards. This does not mean that the pump has been used.

Please strictly follow the instructions for installation and use, and pay attention to electrical installation specifications. Before use, please carefully check the cables, power supply, etc., and take protective measures to avoid safety hazards. We suggest that professionals install this product.

It is forbidden to install it upside down to prevent water from leaking into the motor, which may cause a short circuit and burn the motor.

When installing the water flow switch, place the cover face of the water flow switch facing upwards and make sure to tighten the movable joint next to the water flow switch. Once the water flow switch is turned, the internal screws may become loose due to compression, causing water leakage. Therefore, be sure to tighten the water flow switch! But please do not tighten the live connector too much to prevent the gasket inside from being broken and the screws on the side of the water flow switch from being broken.

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
