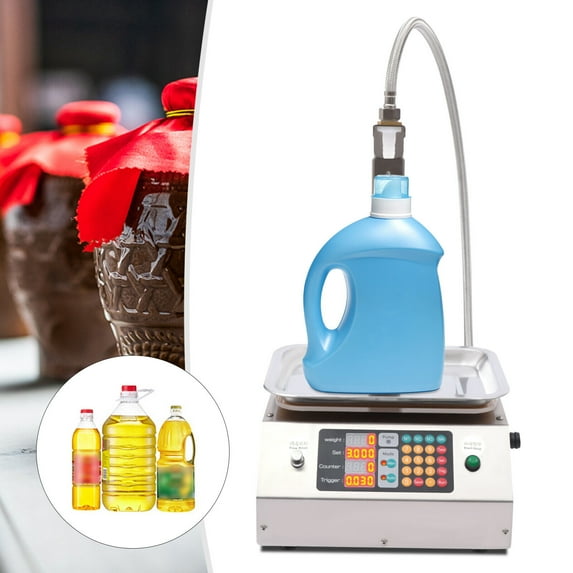

30g-15000g Viscous Liquid Filling Machine Automatic Weighing Large Flow Rate
Key item features
- Easy to Use: You just set the filling weight you want and the machine will do a precise filling job. You do not need to adjust the flow rate and time. It is especially suitable for retail products.
- Low Noise: This filling machine adopts a pure copper motor, which gives you a comfortable environment with low running noise when the machine is working, even if it works continuously for a long time.
- Two Modes: The filling machine adopts automatic and manual modes, so you can freely switch the modes on the control panel according to the actual needs.
- Humanized Speed Adjustment: You can adjust the filling speed according to different liquids, different shapes, and different volumes by adjusting the speed knob on the panel that can be controlled individually, which is convenient and user-friendly.
- High Precision Filling: It uses a microcomputer control pump to achieve precise output with a filling error of 0.004-0.01lb. And it uses single-point calibration, once this machine is calibrated, accurate filling of all weights can be achieved.
- LED Display: You can observe the real-time situation through this LED display, so you can make timely adjustments.
Specs
- Volume capacity17 L
- ColorSilver
- Height5.91"
How do you want your item?
About this item
Product details
Description
The housing of this liquid filling machine is made of stainless steel, which is more durable than other metal materials. It also features an adjustable stand, quantitative filling, a high flow motor, a precise filling, a high-quality filter, etc. So, it will be an ideal helper for you.
Specification
Material: Stainless Steel Material
Product Model: CSY-L17
Rated Voltage: 110V
Rated Power: 200W
Maximum Flow Rate: 17L/min
Applicable Capacity: 0.03kg-15kg/0.07-33.1lbs
Error Range: ≤2-5g/0.004-0.01lb
Plug: American Standard
Filling Height: 0-40cm/0-15.75inch Adjustable
Applicable Bottle Height: 0-450mm/0-17.72inch
Applicable Bottle Diameter: 200mm/7.87inch
Material Type: Liquid
High-temperature Resistant: up to 80℃
Automation Degree: Fully Automatic
Product Size:26*26*15cm/10.24*10.24*5.91inch
Package Size: 35*35*35cm/13.78*13.78*13.78inch
Gross Weight: 8.8kg/19.4lbs
Net Weight: 8kg/17.6lbs
Package Included
1 *Filling Machine Mainframe
1 *English Manual
1 *Inlet Water Pipe
1 *31.5inch Braided Hose
1 *Power Cord
Other Accessories for Assembly
Key Features
Durable Material: The liquid filling machine is made of 304 stainless steel, which is more durable than other metal materials. The 304 stainless steel is food grade, safe and reliable.
Automatic Induction Filling: The automatic induction filling is achieved when empty bottles are placed, which means the machine adapts to the rhythm of human work and is convenient.
Stable and Reliable: The filling is stable and reliable because the filling is not affected by objective factors such as flow rate, water pressure, bubbles, reflux, temperature, liquid level difference, etc. The filling accuracy is constant, and the filling pattern will not change once it is set.
High-flow Motor: This liquid filling machine is equipped with a high-flow motor and can fill at a rate of up to 17 liters per minute.
Stainless Steel Braided Pipe: The stainless steel braided tube of the liquid filling machine with a silicone seal and thickened nut is resistant to a temperature of up to 80℃ and aging.
Anti-drip Discharge Nozzle: This liquid filling machine adopts an anti-drip filling head, making it fill more accurately and effectively by preventing dripping.
High Precision Electronic Scale: This liquid filling machine not only can fill liquid but also can be used as a high precision electronic scale, saving you the money of buying a scale.
Humanized Button: Humanized setting of function keys, numeric keys, and shortcut keys, in line with the operation habits of ordinary people, which is simple and clear. And each button can be controlled individually. The elderly and novices can easily learn.
Filter: It can effectively filter the impurities and other foreign matters in the liquid to ensure the cleanliness of the liquid entering the pump and prolong the service life of the pump.
Application
This liquid filling machine can be used to fill alcoholic beverages, carbonated drinks, fresh milk, mineral water, pure water, glue, yogurt, grease, oral liquid, juice drinks, liquid alcohol, and other non-particulate liquids. It is suitable for food, chemical, catering, daily chemical, tobacco, and wine industries.
Notes
This filling machine is not suitable for corrosive liquids, such as strong acid solution, strong alkali solution, etc. It is also not suitable for pastes and liquids containing solid particles.
Please allow 1-3cm error due to manual measurement and make sure you do not mind before ordering. Please allow the slight color difference caused by the shooting light.
- Easy to Use: You just set the filling weight you want and the machine will do a precise filling job. You do not need to adjust the flow rate and time. It is especially suitable for retail products.
- Low Noise: This filling machine adopts a pure copper motor, which gives you a comfortable environment with low running noise when the machine is working, even if it works continuously for a long time.
- Two Modes: The filling machine adopts automatic and manual modes, so you can freely switch the modes on the control panel according to the actual needs.
- Humanized Speed Adjustment: You can adjust the filling speed according to different liquids, different shapes, and different volumes by adjusting the speed knob on the panel that can be controlled individually, which is convenient and user-friendly.
- High Precision Filling: It uses a microcomputer control pump to achieve precise output with a filling error of 0.004-0.01lb. And it uses single-point calibration, once this machine is calibrated, accurate filling of all weights can be achieved.
- LED Display: You can observe the real-time situation through this LED display, so you can make timely adjustments.
Specifications
Volume capacity
Color
Height
Model
Warranty
Warranty information
