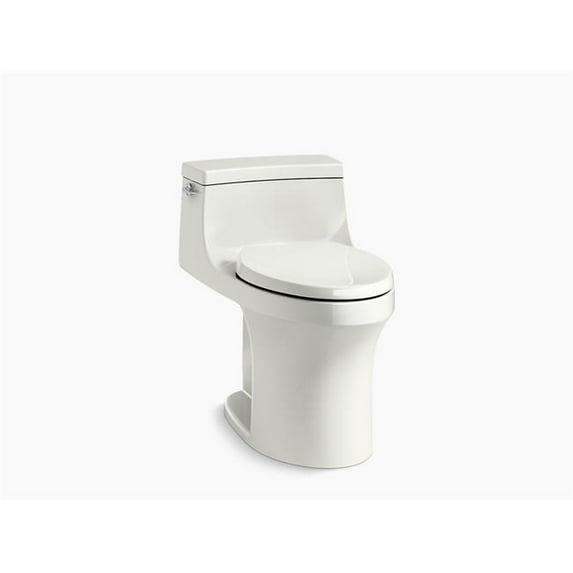

Kohler K-5172 San Souci 1.28 Gpf Elongated One-Piece Comfort Height Toilet - Dune

Product Features:

• One-piece configuration provides a uniform look and simplifies installation
• Elongated bowl offers comfort and convenience, extending out an extra 1-1/2" compared to a round configuration
• Covered under Kohler's 1 year limited warranty
• Constructed of vitreous china for a smooth, hygienic, easy to clean surface
• Installs in a floor mounted configuration
• ADA compliant - complies with the standards for toilets set forth by the Americans with Disabilities Act
• Includes a soft close seat with cover
• Standard Polished Chrome left-hand trip lever included. Pairs well with K-9171-L lever (not included).

Product Technologies:

• AquaPiston: AquaPiston single flush canister technology uses the force of gravity and a precision-engineered tank, bowl, and trapway to create a strong, efficient siphon during flushing. The canister flush valve's 3:2 ratio optimizes flush performance and resists warping and deterioration, while its durable design features 90% less exposed seal material than a standard 3-inch flapper flush valve, guaranteeing leak-free performance. The light-touch canister requires lower activation force than a flapper, and once activated, allows water to flow into the bowl from all sides (360 degrees), increasing each flush's power and effectiveness.
• Comfort Height: Comfort Height toilets offer the greatest accessibility and ease of use with a bowl height of between 16-1/2" and 18", the same as a standard chair.
• WaterSense Certified Product: To help make a difference on a global scale and to further its role as an industry leader in eco-performance practices, Kohler has established partnerships with a number of environmental organizations, including WaterSense. Many Kohler faucets and toilets are equipped with low-flow technology - they use less water, while continuing to meet superior performance standards.

Product Specifications:

• Overall Height: 25-5/16" (measured from bottom of base to top of tank)
• Overall Depth: 27-3/4" (measured from back of tank to front of rim)
• Overall Width: 16-3/8" (measured from rightmost to leftmost edge of toilet)
• Bowl Height: 16-1/2" (measured from floor to bowl rim)
• Flow Rate: 1.28 gallons-per-flush
• Water Area: 10-3/4" x 7-1/2" (inner rim dimensions of bowl, length x width)
• Water Depth (From Rim): 5-3/8"
• Tank Width: 16-3/8" (measured from leftmost to rightmost edge of tank)
• Tank Depth: 6-15/16" (measured from back edge to front edge of tank)
• Trapway (Discharge Passageway): 2-1/8"
• Distance Between Toilet Seat Installation Holes: 5-1/2"
• Rough-In: 12"

Variations:

• K-5172: This model
• K-5172-RA: Right-side trip lever version of this model
• K-4007: Round bowl version of this model with left-side trip lever
