10K GD Trailer Axle Hub and Drum Assembly - 8 Lug (Made After May 2013)

General Duty Hub/Drum Only Specs:

- 1 - 10K Trailer Axle Hub/Drum 8x6.5 - General Duty (New Style)

- 1 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
- 1 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)

- Uses 25580(1.75" ID) and 387A(1.25" OD) bearings (sold separately)
- 5/8" Wheel Studs
- Hub/Drum for 10,000 lb GD Axles Manufactured After 05/2013
- Dexter Compatible

- This Hub/Drum replaces Dexter single piece 8-415 (axles built between 7/2009 and 5/2013)
- This hub/drum is NOT COMPATIBLE with Rockwell Axles

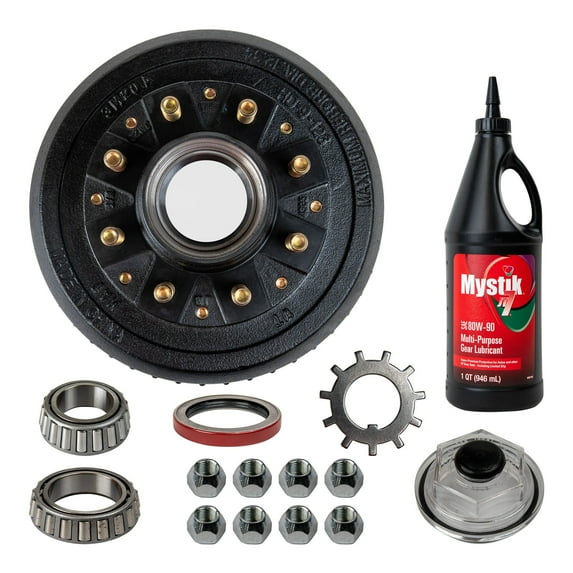

General Duty Hub/Drum Assembly Specs:

- 1 - 10K Trailer Axle Hub/Drum 8x6.5 - General Duty (New Style)

- 1 - 10k (10,000 lb Capacity) Bearing Kit - 1 - 25580 Outer Bearing 1.750 I.D
- 1 - 387A Inner Bearing 2.250 I.D
- 1 - 25520 Outer Race 3.265 O.D (Pre-Pressed In Hub)
- 1 - 382A Inner Race 3.813 O.D (Pre-Pressed In Hub)
- 1 - Unitized Oil Seal-010-051-00 3.880 O.D 2.875 I.D
- 1 - Oil Bath Cap and Plug 21-88
- 1 - 10K GD Tang Washer - 1.5 I.D. x 0.60

- 1 -1 Quart Jug of Axle Oil(Oil Brand May Vary)

- 8 - Cone Wheel Lug Nuts

- 5/8" Wheel Studs

This 10K general-duty trailer axle hub and drum is an ideal option for a number of trailer types, and we know that you'll find it easy to install. The inner and outer races are already pressed in, and the 8 on 6.5" bolt pattern makes it easy to find suitable tire and wheel assemblies (TWAs) for your trailer. We can help you find the seals, bearings, caps, and nuts that you need to complete your repairs, and we're always happy to answer any questions you may have. Order your new 9K-10K general-duty trailer axle hub and drum from The Trailer Parts Outlet today!

Features:

- Hub & Drum with 8 on 6.5" Bolt Pattern for 10,000 lb General Duty Axles Manufactured May 2013-Present
- Supersedes 1 piece hub/drum manufactured from 2009-2013
- The races are pre-pressed for your convenience.
- The oil seal, bearings, oil cap, wheel nuts and retaining ring for the hub are sold separately
- This hub is designed for use with 10K General Duty axle spindles
- Each hub has a capacity if 5,000lbs
- The 12-1/4" x 3-3/8" drum is already mounted to the hub for ease of installation
- Spindle nut and washer sold separately
- This Hub/Drum replaces Dexter single piece 8-415 (axles built between 7/2009 and 5/2013)
- This hub/drum is NOT COMPATIBLE with Texas Pride or Rockwell Axles
