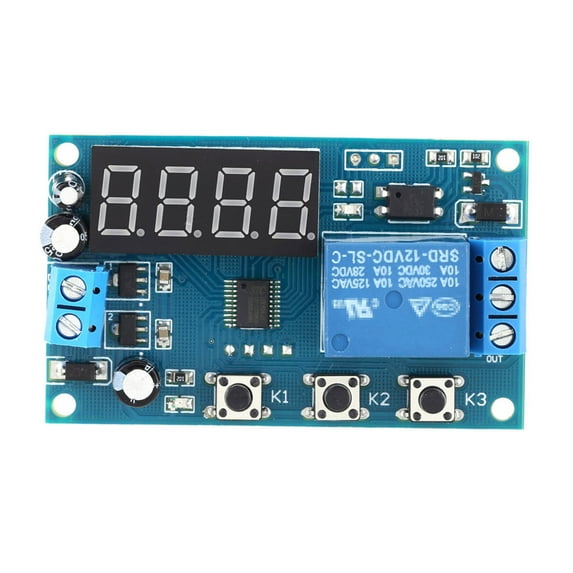

Delay Module,Relay 12v Time Switch Relay Delay Time Switch Hxber Xibany Eryue Delay Delay

Multifunction Delay Time Module Switch Control Relay Cycle Timer DC 12V last setting parameters can be memorized after off. LED digits display, intelligent control, time relay/delay function. New upgrades to simplify, meeting users' needs. saving function, one-key switch, can turn off display. use of opto isolated input and output, enhanced -jamming capability and consumption. Increase supply -reverse function. To ensure stability, industrial grade PCB board.

Working modes selection: after on, long press K1 for 2s, later into selection of modes: P1~3.
P-1: Monostable trigger delay, a signal to trigger relay, time is , relay disconnect;
P-2: A signal trigger and countdown begins, T1 seconds after, relay open T2 seconds, then close;
P-3: Open T1 seconds, disconnect T2 seconds, infinite loop. Users can set relay time T1 and T2;

Specifications:
Working Current: 50mA
Voltage: 12V
Package Size: 11.5 * 7.5 * 2cm / 4.53 * 2.95 * 0.8in (L * W * H)
PCB Size: 65 * 38 * 18mm / 2.56 * 1.5 * 0.7in (L * W * H)
Relay Specification: 5~30V 10A or AC 220V 10A
Working Temperature: -40-85°C
Static Current: 20mA
Display: LED Digital Display
Timing (Settable): 0~999.9 seconds; 0~9999 seconds; 0~9999 minutes
PCB Weight: 26g / 0.93oz


This is a delay timer module with high performance, which is convenient and practical for users.

Package List:
1 * Delay Timer Module
