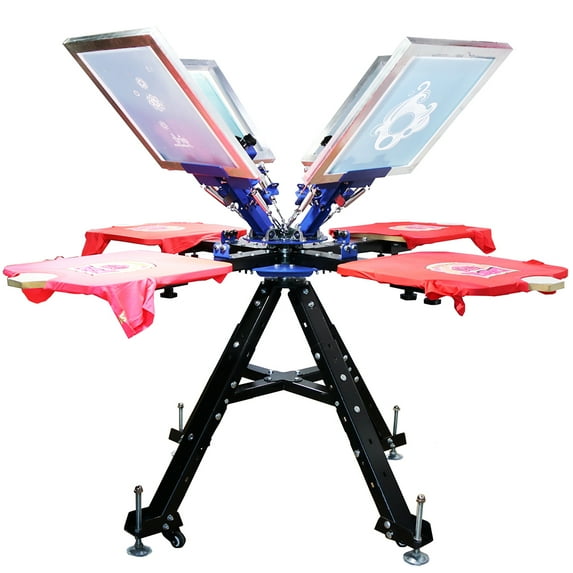

Micro-registration Silk Screen Printing Machine Double Rotating T-Shirt Screen Printing Press 4 Color 4 Station Screen Printer

Description:
This machine is mainly used for accurate color printing of four-color T shirt, equipped with four net frame collet and four T shirt platform station.
This machine is combination structure, the whole machine is packed wth 3 boxes ,small size, and it is more suitable for transportation; According to the installation diagram and configuration installation tools can install the machine.

Function Introduction:
1:The table plate part and the screen frame part can be independently rotated 360 degrees, and the operator can operate at any station.
2:Each screen frame’s fixing device is equipped with precise positioning wheel,when the positioning iron on the arm placed in positioning wheel closely, it can ensure the printing precision .
3:Each screen frame’s fixing device is equipped with big lock wheel, screen frame arm can easily fall into the metal positioning wheel when touch the two big lock wheels ,and it also can prevent the direct collision between the positioning iron and the metal positioning wheel .
4:According to the weight of the screen frame, spring tension can be adjusted by the basket screws to achieve balance;
5:Screen frame chuck’s width is (10in) 25 cm ; It is suitable for screen frame with outside size within (24 in) 60 cm and screen frame with thickness size is within 4 cm (1.6 in) .
6:Screen frame chuck can be adjusted up to 5 cm (2 in)according to the height of substrates;
7:Screen frame chuck knob fix the screen frame together with the special aluminum alloy plate, and it can be fit closely and be more stable.
8:The pallet can move 10cm(4in)from front to back by the connections at the bottom of the pallet.

Items included:
1 set of N442L Micro-registration 4 Color 4 Station Screen Printing Press（3 cartons/set）(006445)
