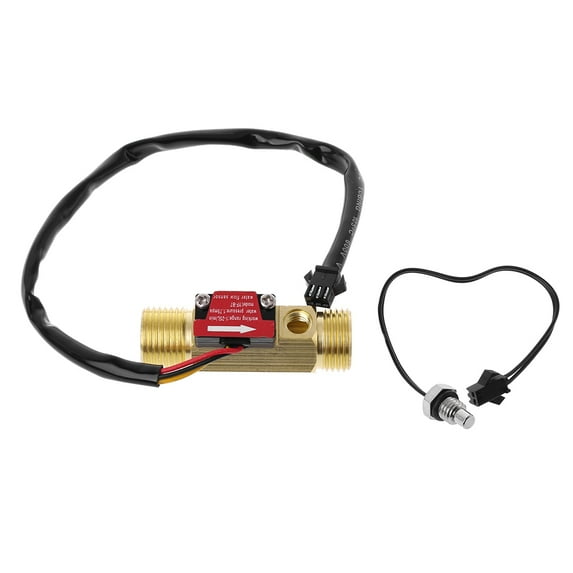

Compact Hall Effect Flow Rate Meter 1~25  L/min G1/2" Thread Temperature Measure

Product Description :
Water Flow sensor includes  a plastic/brass body housing,  a water rotor, and a hall-effect sensor, PCB electronics board.
Working performance : When the water flows through the rotor, then rotor is rolled.
Its speed changes with different rate of flow. Then the magnetic rotor make reaction to Hall sensor,the hall-effect sensor outputs the corresponding pulse signal .
The flow sensor is suitable to detect the flow in water dispenser or coffee machine .....

100% brand new and high quality

Specification:
Material: Brass
Type: Hall Flow Rate Meter
Mounting Position: Horizontal & Vertical
Application: Water heater, broiler and heat pump ...etc.
Rated Voltage: DC 5V
Pressure Resistance: ≥1.75MPa
Working Voltage Range: DC 5-15V
Insulation Resistance: >100MΩ
Flow Pulse: (11*Q) Q=L/Min±3%
Output Pulse Duty Ratio: 50%±10%
Accuracy: (1～25L\MIN﹞±3%
Size: G 1/2"
Quantity: 1 Pc

Flow Sensor Technical Data
(1) Flow Rate:  1~25  L/min
(2)Flow Pulse:   F=  11 *Q    ± 5%  ,  Q=L/min
(3) Working Voltage:  DC3V ~ 24V
(4) Working Current:  15mA
(5) Suffering Pressure: Max  1.5Mpa
(6) Working Temperature: -40 °C ~+80 °C,
(7)Min Insulation Resistance:100M Ohm
(8)Output Pulse Duty Cycle: 50% +/- 10%
(9) Max output Pulse Voltage: >DC4.7V ( input voltage DC5V)
(10)Min Output Pulse Voltage : (11) Sensor:  Hall effect sensor, Digital Output. and temperature sensor
(12) Wire Connection :
       Terminal 1  ( Red) : Vdd  " + "
       Terminal 2 (Black) Vout   " - "
       Terminal 3 ( Yellow )  Gnd : output
       Terminal 4   Temp Sensor
       Terminal 5  Temp. Sensor
(13) Connector:  Housing XH2.5-3P
TEMPERATURE VS RESISTANCE TABLE
Resistance         50k Ohms at 25deg. C
B Value            3950K at 25/50 deg. C
Temp. Range:－40-＋150℃


Note:
1. Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!


Package includes:
1 x Hall Flow Rate Meter
