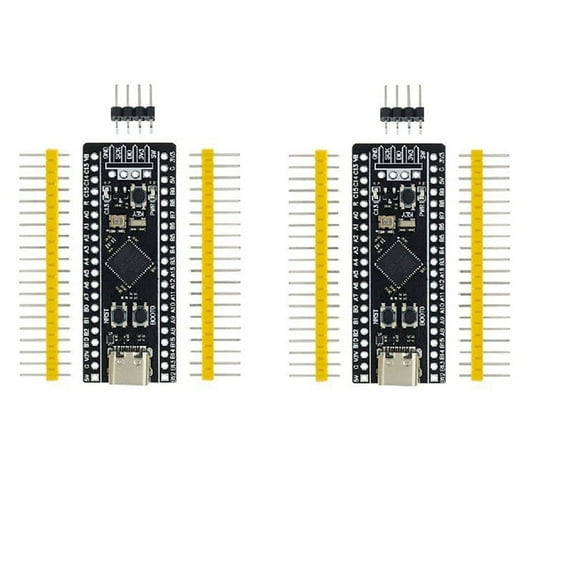

2Pcs STM32F401 STM32F401CCU6 Development Board V3.0 STM32F4 Learning Board Support for Programming

Boards with version V1.3 and above have 3 buttons, reset button, BOOT0 button, and user buttons.
How to enter ISP mode
1: and hold the BOOT0 button and the reset button under the power-on state, then release the reset button, and release the BOOT0 button after 0.5 seconds
2:Hold down the BOOT0 key when power is , and release the BOOT0 key 0.5S after power on
DFU mode:just use the data cable to connect to the computer, if there is a problem of unrecognized, you can properly heat the chip (25 Celsius), and then re-enter the ISP mode
Serial port mode:use USB to serial port to connect PA9 and PA10 of the core board
WeAct HID FW Bootloader
No need for USB to serial port, no debugger, no computer driver, just a TYPE-C data cable to complete the firmware download
and hold theKEY button, click thereset button, LED C13flashes, release theKEY buttonto enter
model:STM32F401CEU6
Colour:Black
Material:PCB

Package Contents:
2 * Development Board with pin

Only the above package content, other products are not included.
