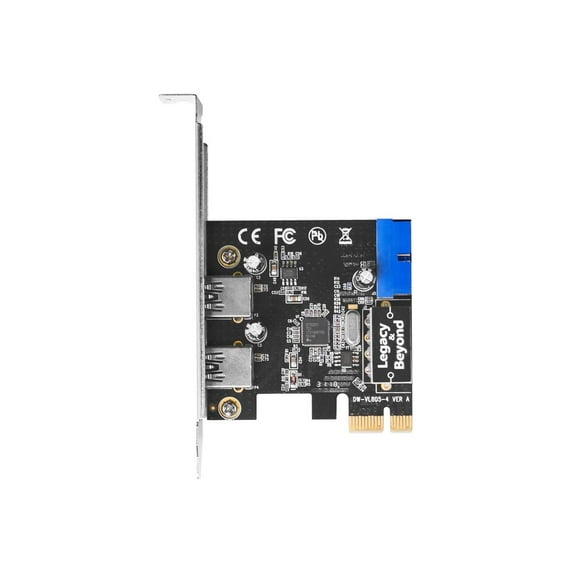

USB 3.0 4-PORT (2-EXT

Features
Quickly adds two external USB 3.0 ports and 2 USB 3.0 ports via internal 19-pin USB header through an available PCI Express slot for connecting a variety of external USB devices
Supports SuperSpeed USB 3.0 data transfer rates up to 5Gbps providing fast and smooth data transmission
Supports UASP (USB Attached SCSI Protocol) and increases data transfer speed with external storage devices especially for SSDs
Each port provides power output up to 900mA and features Over-Current protection to further protect your connected devices
Built-in 19-pin header allows expanding to another two USB 3.0 ports
Installs into standard height or low profile system chassis with the included bracketsSpecifications
Chipset: Renesas PD720201
Bus connector: PCI Express x1
Version: PCI Express 2.0
Data transfer rate: Up to 5Gbps
USB power output: Up to 900mA
Connectors:
External:
2 x 9-pin USB 3.0 Type A, Female
Internal:
1 x 4-pin Molex power connector
1 x 19-pin USB 3.0 header
Product:
Color: Black
Environmental conditions:
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Country of origin: ChinaSystem Requirements
Desktop PC with one available PCI Express (PCIe) slot
Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit)
Windows Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008 and 2003 (32-/64-bit)
Note: Molex power connection is requiredPackage contents
USB 3.0 4-Port (2-Ext plus 19-pin header) PCIe Host Card
Spare Low profile bracket
Driver CD
Installation guideItem Dimension (L"xW"xH")
8 x 6 x 2

Weight
1 lb

Warranty Information
1 Year
