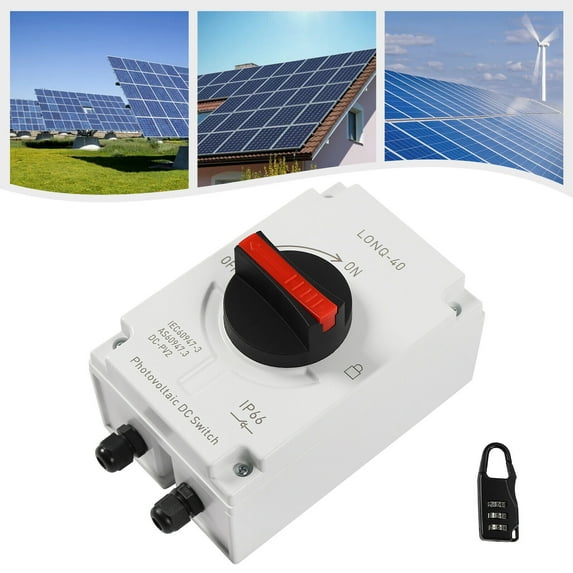

1200V PV Solar Disconnect Switch Waterproof Photovoltaic Circuit Isolator 32Amp
Key item features
- High Performance: It can cut off the switching current 32A at voltages up to 1500V and it has a load breaking up to 8 times the rated current, meeting the requirements of most PV systems. Arc extinguishing technology is used to effectively suppress arcs, making it safer to use.
- Easy to Install: Its compact size and complete range of screw fittings make it easy to mount on the wall and take up little space. The ample internal space allows for easy wiring.
- Independent Poles: With four independent poles, you can use links to change the way the poles are connected. The poles can be connected in series or parallel, or as a variant of series and parallel to determine the load on and off the switch.
- User-friendly: The waterproof connector allows for faster and safer installation. It is also equipped with 4 spare connectors for replacement needs.
- Customer Service: We aim to provide quality products and services. If you have any problems, please feel free to contact us. We will reply and solve the problem for you as soon as possible.
Specs
BrandFlkoendmall
ColorWhite
How do you want your item?
About this item
Product details
Flkoendmall 1200V PV Solar Disconnect Switch Waterproof Photovoltaic Circuit Isolator 32Amp
This PV solar disconnect switch is made of insulated, flame-retardant PC and nylon, providing both durability and safety. It is equipped with high-quality waterproof connectors for quick installation. Its powerful DC isolation and excellent protection are ideal for any PV system!
Key Features
High-quality Materials: The high-quality PC and nylon materials are characterized by good flame retardant, insulation, chemical resistance, drop resistance, aging resistance, and wear resistance, ensuring a long service life.
Good Adaptability: After testing, its waterproof grade reaches IP66, the applicable ambient temperature is -40°C to +85°C, and it is also equipped with a silicone waterproof ring, so it can be protected from rain, dust, and other weather factors to adapt any outdoor installation scenario.
Circuit Isolation: It is used to quickly disconnect the DC power from the solar panel to the charge controller battery or inverter for the repair, maintenance, installation, and inspection of the system.
Safety Lock: The safety lock locks the handle in the "off" position to prevent misuse or tampering. The safety lock can be installed by simply pushing out the red part of the handle.
Comfortable Handle: The ergonomic handle rotates flexibly for comfortable and effortless operation.
Application
It is widely used in domestic, RV, oil, metallurgical, and off-grid solar systems, grid-connected solar systems, DC power systems, marine power systems, solar PV systems, or other DC systems.
Specifications
Material: PC, Nylon
Color: White
Model: LONQ-40
Product Category: DC-PV2
Number of Poles: 4P
Mounting Type: Panel Mount
Switch Type: Rotary Switch, Temperature Switch
Rated Voltage: 1000-1200VDC
Rated Current: 32A
Waterproof Rating: IP66
Rated Impulse Withstand Voltage Uimp: 8kV
Drop Resistance: 1000/1700
Standard: IEC60947-3, GB/T14048.3
Ambient Temperature: -40°C-+85°C/-40°F-+185°C
Insulation Voltage: DC 1500V
Connection Type: M20 MC4 Connectors
Product Size: 10.4*16.1*11.1cm/4.09*6.33*4.37in
Packing Size: 26*11*12cm/10.23*4.33*4.72in
Gross Weight: 0.8kg/1.76lbs
Net Weight: 0.7kg/1.54lbs
Package Included
1* PV Solar Disconnect Switch
4* Expansion Tubes
4* Mounting Screws
4* Waterproof Connectors
1* Passcode Lock
1* English User Manual
Notes
1. Please ensure that all electrical connections as well as screws are tightened.
2. We recommend using crimp sleeves for DC multi-strand cables to ensure that the wires do not come loose. Loose cables can cause excessive power loss and generate overheating, leading to serious damage to the switch.
3. Turn the switch on and off several times before use to ensure that a positive snap action can be felt and heard.
4. When used for electrical maintenance and installation, it is important to ensure that the operator holds electrician qualification and takes necessary power off and insulation protection measures.
5. Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.
6. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
