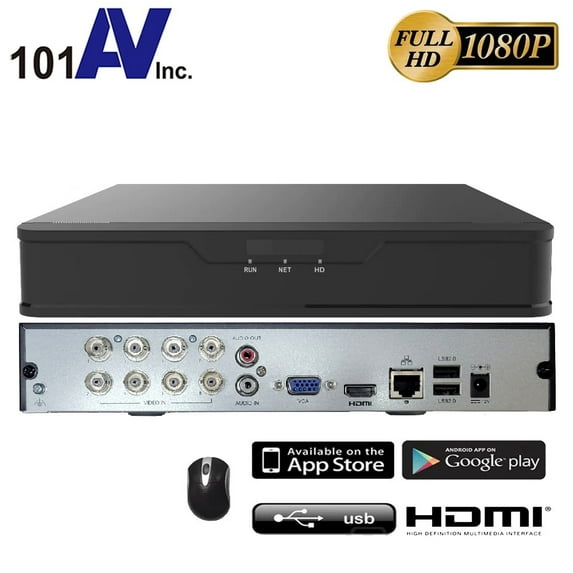

101AV 8CH Security System Hybrid HD H.265+/H.264 5in1 DVR, HD-TVI/CVI/AHD/IP, 1080P HDMI/VGA Video Out, Phone APPs for Home & Office, Work w/ 5MP Lite Analog & 4MP IP Camera

Features:

• Remote access, Anytime Anywhere with mobile viewing and alarm notifications.
• Keep your old analog cameras and upgrade your old/analog CCTV system to Cloud/IP based network system for remote access anytime anywhere capability.
• Reliable & user-controlled storage that is confidential. Storage is local and not on the cloud, which decreases risk of cyber attacks.
• Comprehensive range of Super High Definition product line, including cameras, DVRs/NVRs, and Super HD monitors
• Motion/alarm notifications via cell phone/pad/PC/DVR with audio beeping and full page display call-up on local monitors.

Safe and Dependable

• U.S TEL. local service, Tech Support#1-408-720-0029, 8AM-5PM Monday to Friday, California Time

5-in-1 Hybrid 5MP DVR

• Combination of 12 total Analog + IP cameras; Supports 8 Analog (TVI, AHD, CVI, CVBS) + 4 IP cameras, 7 Analog + 5 IP ... or 4 Analog + 8 IP cameras by IP Address.
• Support 1 x SATA HDDs (Each HDD can up to 8TB).
• Exceptionally strong password and anti-hacking protocols to increase privacy and security. Snapshot, and Email notifications for real time protection.
• DVR can only support Analog HD TVI & AHD up to 5MP, CVI up to 4MP, and IP camera up to 4MP resolution.

Advanced H.265+ High Efficiency Video Format

• H.265+ can further improve compression ratio on the basis of H.265 standard
• It can save about 75% storage compared with H.264 and thus effectively saving storage resources and provides an excellent and smooth viewing experience.

Pre-Alarm Recording and Motion Detection

• Motion activated full screen alarm call up protection with optional audible warning.
• Dual-stream: Network video and local recording.

User friendly setup instructions

• Including QIG (Quick Installation Guide) for PC based VMS/CMS integration.
• Cloud based cell phone APPs for both Android and iPhone without confusing port forwarding, and real time Snapshot alarm notification. There are options to show 1, 4, and 8 cameras simultaneously on both the mobile APP on cell phone and also the Central Monitoring Software (CMS) on PC.

Specifications:

• Video Input: 8 Channels
• HD-TVI/HD-AHD: 5MP,4MP,1080P,720P
• HD-CVI: 5MP,4MP,1080P,720P
• CVBS: PAL/NTSC IP CAM: 4MP,4chs (only IP up to 8chs)
• Video Output: HDMI(1080P@60Hz/720P)/VGA(1080P@60Hz/720P)
• Remote Connections: 128
• Network Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, ONVIF
• Incoming Bandwidth: 40Mbps
• Outgoing Bandwidth: 60Mbps
• SATA : 1 SATA Interface Capacity(Up to 8TB/HDD)
• Two-Way Audio Input: 1CH, RCA
• Network Interface: RJ45 10M/100M self-adaptive Ethernet interface
• Serial Interface: RS-485 Half-duplex
• USB Interface: 2 x USB2.0
• Power Supply: 12VDC
• Consumption: ≦ 8W
• Working Temperature: 14°F ～131°F
• Working Humidity: ≦ 90%
• Dimensions: 10.2 x 9.4 x 1.8 inch
• Weight: 1.1 kg (2.42lb)
