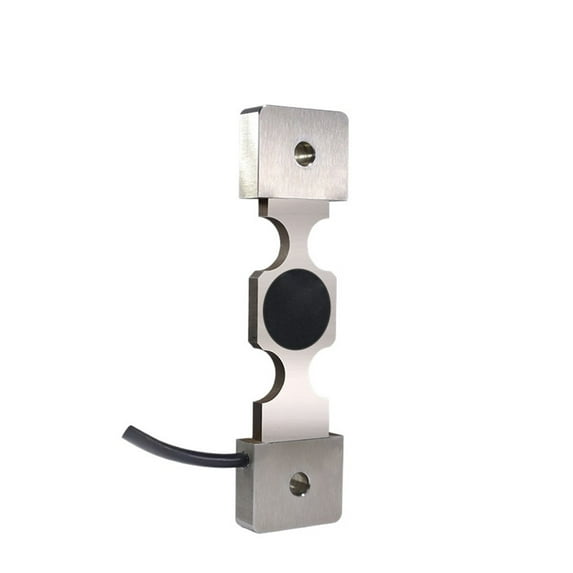

Load Sensor, Micro Strain Gauge Sensor Load Cell 50kg Light Structure Mixing Plant Bin Tank Weighing Fan Monitoring Impact Resistance ,Easy to Use

A load cell is actually a device that converts a mass signal into a measurable electrical signal output. When using a sensor, you should first consider the actual working environment in which the sensor is located. This is crucial to the correct selection of the weighing sensor. It is related to whether the sensor can work normally, its safety and service life, and even the reliability and safety of the entire weighing instrument.

Specification

Capacity: 50KG

Rated Output: 1.0±2.0mV/V

Material: Stainless Steel

Non-Linearity: 0.5%F.S.

Impedance: 1000

Hysteresis: 0.5%F.S.

Working voltage: 5-15V

Repeatability: 0.5%F.S.

Safe Overload: 150%

Creep(30min): 0.3%F.S/30min

Maximum Overload: 200%

Zero Balance: ±3%F.S.

Cable Specifications: 4*3m

TempEffect on Zero: 0.2%F.S./10

Operating Temp Range: -20-60
