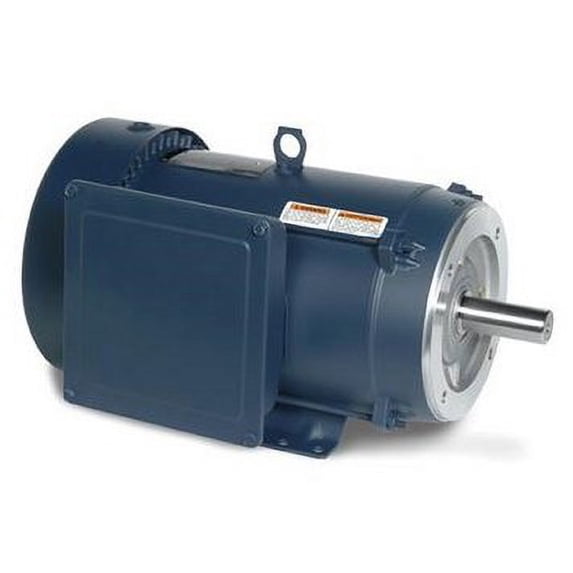

10 hp 3450 RPM 215TC Frame TEFC C-Face- Rigid Base 208-230V Leeson Electric Motor # 140695
(No ratings yet)
Key item features
- 10 hp 3450 RPM, 41.5 amps 208-230 Volts 60hz. single Phase Motor
- NEMA 215TC Frame Keyed Shaft 1 3/8" Diameter x 3 3/8"
- Service Factor: 1.0 - overload protection = None
- Reversible - Rigid Base Mount - Ball Bearings - Class B Insulation
- 1 Year Manufacture Warranty
General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor has rigid base with C-Face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 7 1/4" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan cooled.
Specs
Current price is USD$2,068.00
Price when purchased online
Out of stock
How do you want your item?
Out of stock
