1 * Module-Blue

1. Any 1.6-60V battery and lithium battery can be used;
2. LCD display, battery voltage, charging percentage and charging time are clear at a glance;
3. The function is very powerful and can automatically control charging.
4. Charging time can be controlled; 5. Corresponding parameters can be set and uploaded through the serial port

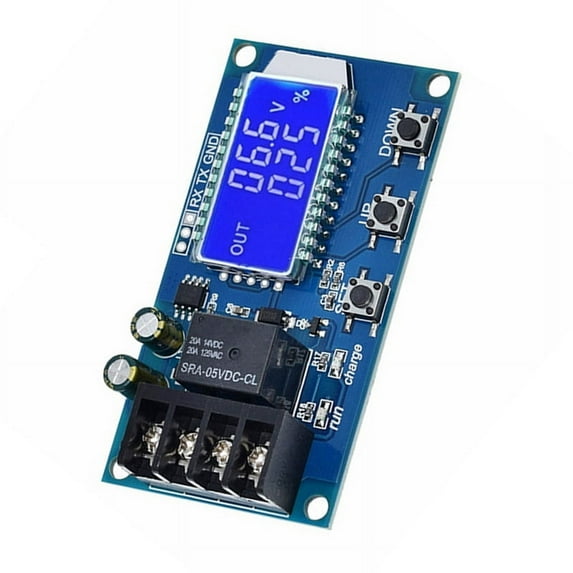

Product name:CNC charging module;Product model:XY-L10A;Control voltage:DC6-60V;Control current:≤10A

Control accuracy:0.1V
Output type:direct output
Colour:blue
Material:Metal + Plastic
Description:
1. Function description
a)Automatic charging control function:
By setting the upper limit voltage UP and lower limit voltage ; when the battery voltage ≤ the lower limit voltage ,the relay is turned on and the charger starts charging the battery; when the battery voltage ≥ the upper limit voltage UP,the relay is turned off to complete an automatic charge;
b)Charging time control function:
How to turn on the time control function?
After entering the parameter settings,if the parameter OP is not set to 0,the time control function be enabled. The default parameters of OP are:--:--h,and the time control function not be enabled by default;
2. Parameter settings
a)By long pressing the SET button,enter the parameter setting interface,the LCD display SET;
b)After entering the parameter setting interface,short press the SET key to switch the set parameters;
c)After selecting the parameters,you can set them through the UP/DOWN keys,supporting short press and long press (rapid increase or decrease);
d)If you want to set other parameters,repeat steps b) and c);
e)After all parameter settings are completed,press and hold the SET key to exit and save;

Package Contents:
1 * Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
