Vacuum Gauges in Pressure & Vacuum

Vacuum gauges come in several types, each suited for different applications. The three main types are:

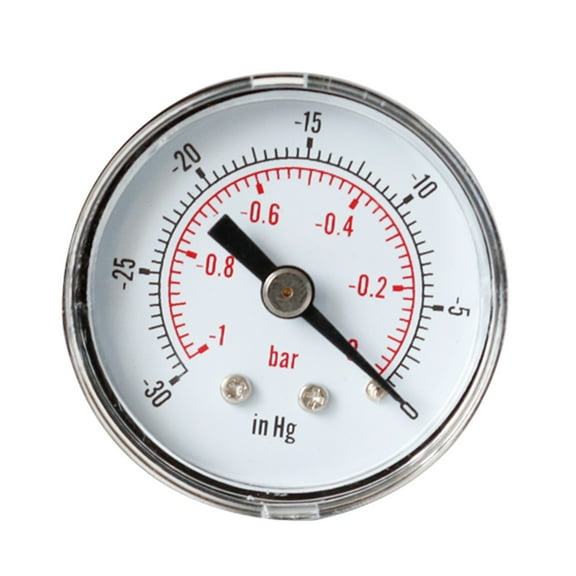

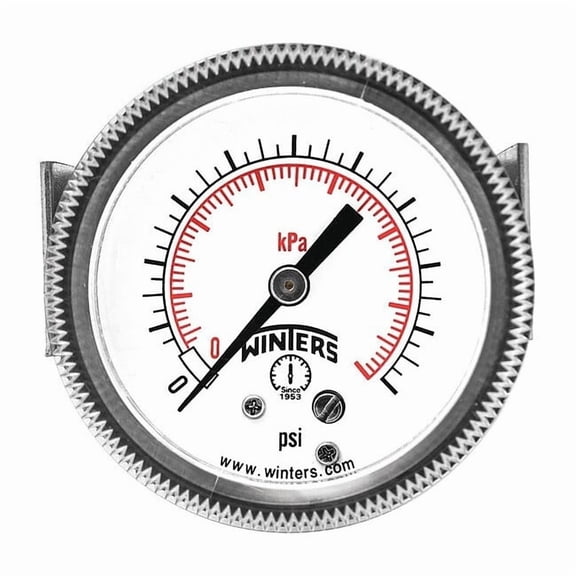

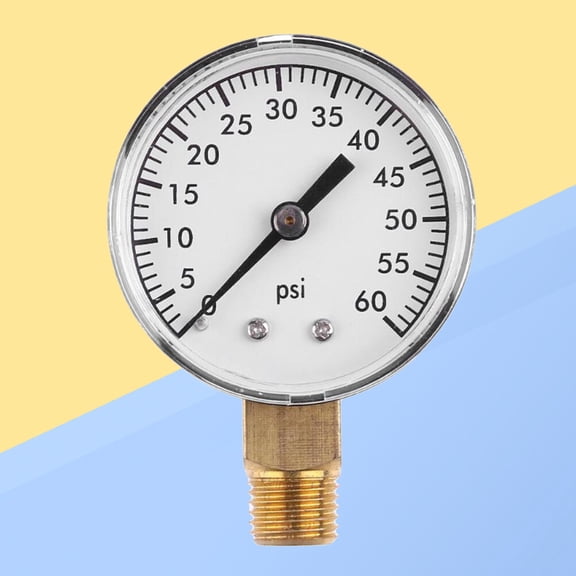

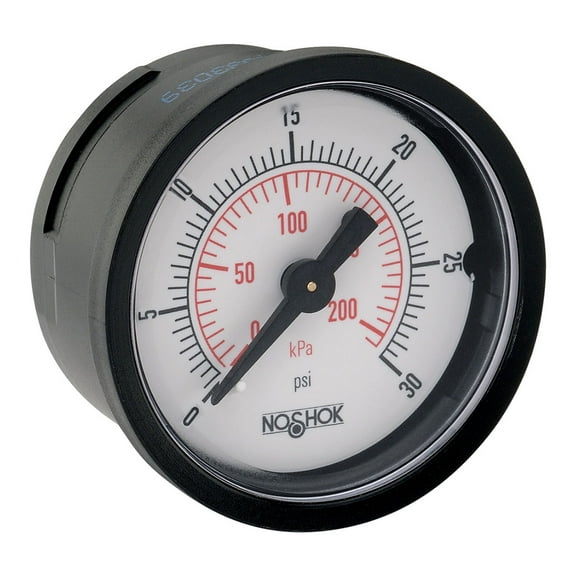

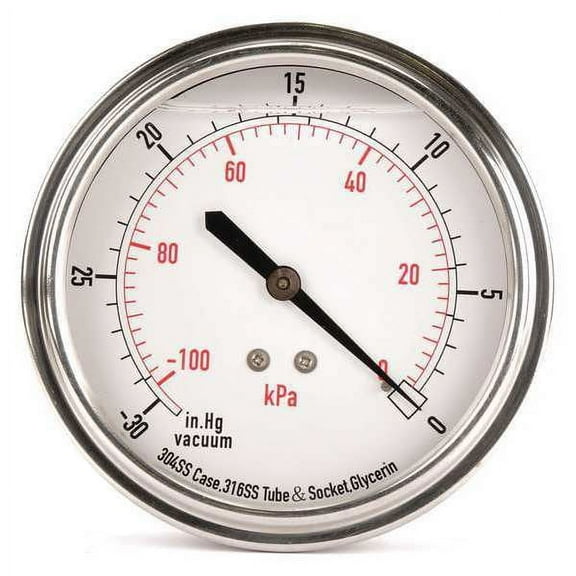

• Mechanical Vacuum Gauges: These use a physical mechanism like a Bourdon tube or diaphragm to measure vacuum pressure. They are durable and don't require power.

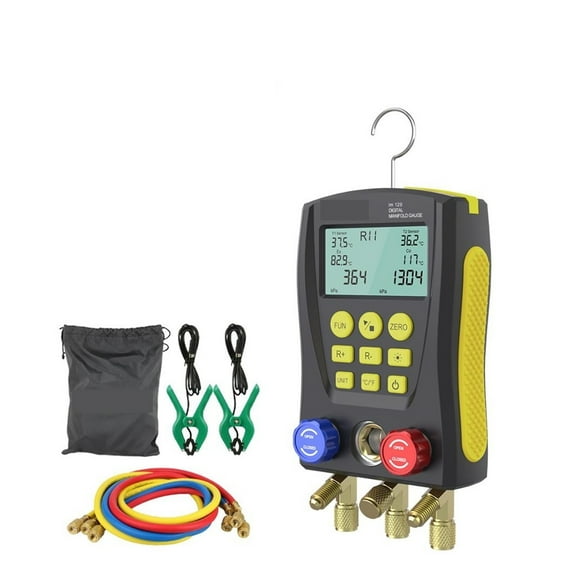

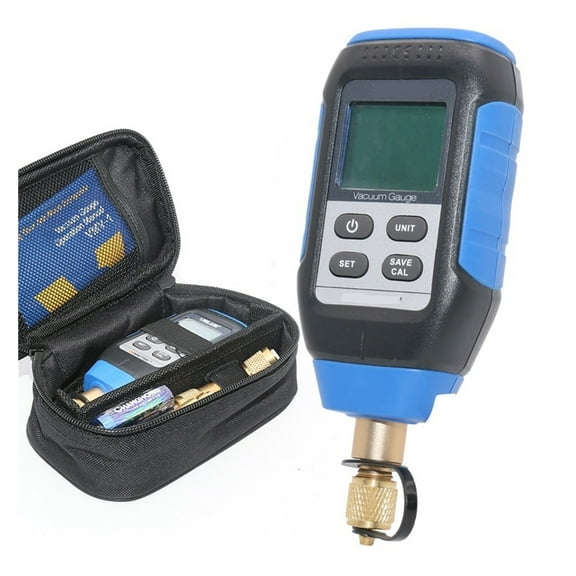

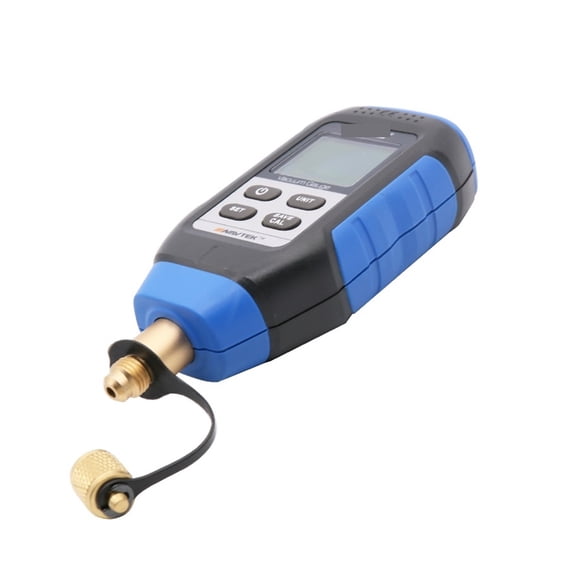

• Digital Vacuum Gauges: These provide electronic readings with high accuracy and often include features like data logging or app connectivity.

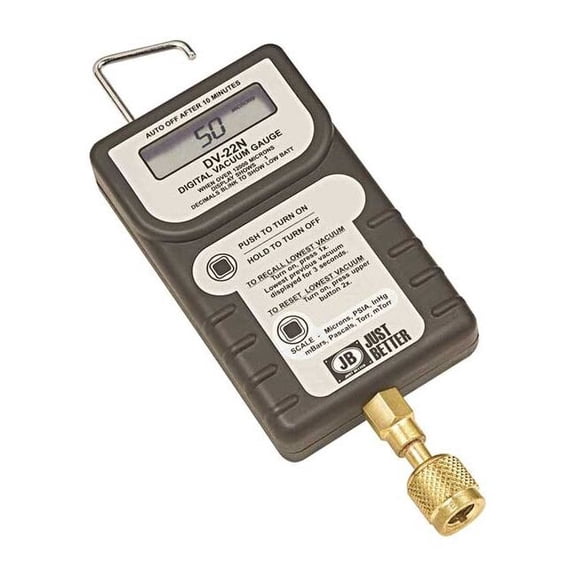

• Micron Vacuum Gauges: Designed to measure very low pressures (microns), these are commonly used in HVAC and refrigeration systems to detect leaks and ensure proper vacuum levels.

Choosing the right type depends on your specific needs, such as accuracy, range, and ease of reading.

Connecting a vacuum gauge correctly is important for accurate readings in HVAC work. Here's a simple guide:

1. Locate the Service Port: Find the vacuum or refrigerant service port on your HVAC system, usually on the low-pressure side.
2. Attach the Gauge Hose: Connect the vacuum gauge hose securely to the service port to prevent leaks.
3. Ensure Tight Seals: Check all connections for tightness to maintain vacuum integrity during measurement.
4. Start the Vacuum Pump: Turn on the pump and monitor the gauge to track the vacuum level.

Following these steps helps ensure you get reliable vacuum readings for system maintenance or repair.

inHg stands for inches of mercury, a unit used to measure vacuum pressure. It indicates how much the pressure is below atmospheric pressure by comparing it to the height of a mercury column.

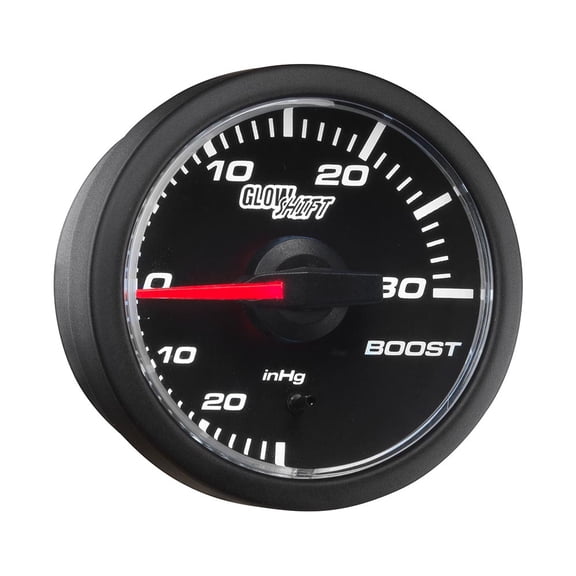

On a vacuum gauge, readings in inHg show the strength of the vacuum. For example, 29.92 inHg represents a perfect vacuum at sea level. This unit is common in HVAC and automotive applications to quantify vacuum levels.

Understanding inHg helps you interpret gauge readings accurately and assess system performance.

Checking the accuracy of your vacuum gauge is key to reliable measurements. Here are some tips:

• Compare with a Known Standard: Use a calibrated reference gauge to cross-check readings.
• Inspect for Damage: Look for cracks, leaks, or worn parts that can affect accuracy.
• Zero Calibration: Ensure the gauge reads zero when disconnected from any system or under atmospheric pressure.
• Regular Maintenance: Clean and service the gauge as recommended by the manufacturer.

If you notice inconsistent or drifting readings, it might be time to recalibrate or replace the gauge.

Detecting leaks in HVAC systems often involves monitoring vacuum levels measured in microns. Generally, a vacuum level above 500 microns after the system has been evacuated may suggest a leak or moisture presence.

Here's what to consider:

• Steady Vacuum: After pumping down, the vacuum should hold steady. A rising micron reading can indicate a leak.
• Leak Size: Small leaks might cause slow pressure rise, while larger leaks cause rapid changes.
• Moisture Impact: Moisture can also affect vacuum readings, so proper drying is important.

Using a quality vacuum gauge helps you identify leaks early and maintain system efficiency.
