ATV CDI Boxes in ATV Ignition Parts(325)

A CDI (Capacitor Discharge Ignition) box plays a crucial role in an ATV's ignition system by controlling the timing and release of electrical sparks to the engine's spark plug. It stores and quickly releases electrical energy to ignite the fuel-air mixture inside the engine cylinder. This process helps the engine start and run smoothly. The CDI box ensures proper ignition timing, which affects engine performance, fuel efficiency, and overall ride quality. Different ATVs may require specific CDI box types compatible with their engine and electrical system.

Signs of a failing CDI box on an ATV can include:

• Engine misfires or runs inconsistently: The engine may hesitate or stall unexpectedly.
• Difficulty starting: The ATV might crank but fail to start or take longer to start.
• No spark: The spark plug may not fire, causing the engine not to run.
• Loss of power: Reduced engine performance or sluggish acceleration.
• Intermittent operation: The ATV may start and run fine sometimes but fail at other times.

If you notice these symptoms, testing or replacing the CDI box might be necessary to restore proper function.

When selecting a replacement CDI box for your ATV, keep these factors in mind:

• Compatibility: Ensure the CDI box matches your ATV's engine size, model, and year for proper fit and function.

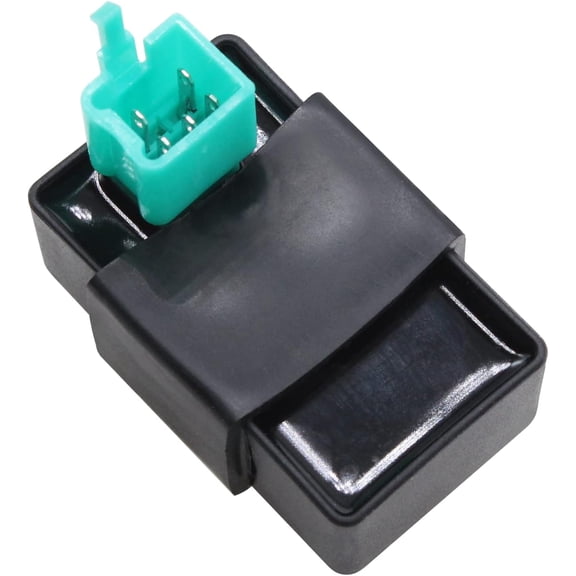

• Pin configuration: Check the number of pins (e.g., 4-pin, 5-pin, 6-pin) to match your existing wiring harness.
• Type of ignition system: Confirm if your ATV uses AC or DC CDI, as they are not interchangeable.
• Performance needs: Some CDI boxes offer high-performance or racing features, which may improve throttle response or rev limits.
• Quality and durability: Look for reliable products that can withstand outdoor conditions and vibrations.

Reviewing product details and consulting your ATV's manual can help you pick the right CDI box.

Testing a CDI box typically involves these steps:

1. Visual inspection: Check for physical damage, corrosion, or loose connections.
2. Use a multimeter: Measure resistance and continuity on the CDI box terminals according to your ATV's service manual specifications.
3. Spark test: Disconnect the spark plug, connect it to the ignition coil, and crank the engine to see if a spark is produced.
4. Swap test: If possible, replace the CDI box with a known good unit to see if the issue resolves.

Because CDI testing can be technical, consulting a professional or referring to your ATV's repair guide is advisable for accurate diagnosis.

Aftermarket CDI boxes can sometimes enhance ATV performance by offering features like higher rev limits, quicker ignition timing, or improved spark strength. These upgrades may lead to better throttle response, increased power, or smoother acceleration. However, results vary depending on the ATV model and the quality of the aftermarket CDI box. It's important to choose a product compatible with your ATV and consider how it aligns with your riding needs. Keep in mind that modifying ignition components may affect engine longevity and warranty coverage, so weigh the benefits and potential risks before upgrading.
