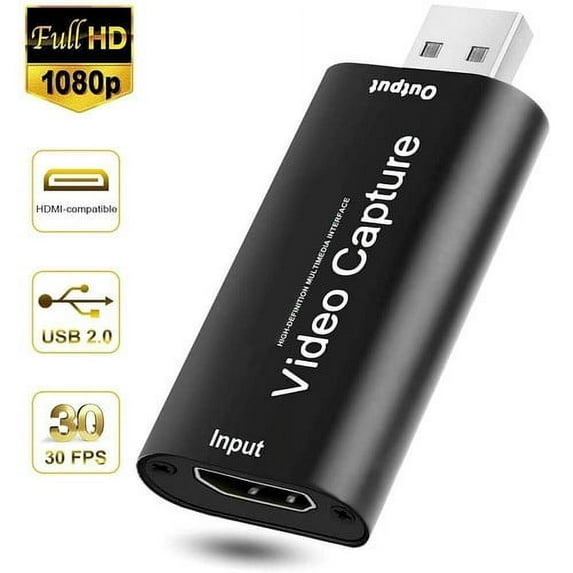

YMDZ 1080 P 4K Video Capture Card with USB Cable

Audio Video Capture Cards HDMI Video Capture HDMI to USB, Full HD 1080p USB 2.0 Record via DSLR Camcorder Action Cam for Gaming, Streaming and Live Broadcasting Video Game Grabber Converter

Product aliases: live video capture card, USB2.0 video capture card, HDMI-compatible video capture card

Product introduction: This USB2.0 capture card is compact and portable, plug-and-play without power supply, high-definition and no freeze, it can capture HDMI-compatible video and HDMI-compatible audio at the same time, and can transmit audio and video signals to a computer, Preview and store on the smartphone. It is suitable for high-definition acquisition, teaching recording, medical imaging, etc. Through many free third-party playback and acquisition software, preview, recording, acquisition, live broadcast and other functions are realized. HDMI-compatible video acquisition conforms to UVC and UAC standards and is easy to use.

Features:

1. Support input maximum resolution 3840×2160@30Hz;

2. Support the maximum output resolution of 1920×1080@30Hz;

3. Support 8/10/12 bit deep color;

4. Support AWG26 HDMI-compatible standard cable: input up to 15 meters (1080P and below resolution);

5. Support most acquisition software, such as VLC, OBS, Amcap, etc.;

6. Support Windows, Android and MacOS operating systems

7. Support all third-party player software compatible with UVC and UAC protocols;

Specifications:

1. Input interface: 1*HDMI-compatible interface;

2. Output interface: 1*USB2.0 interface;

3. HDMI-compatible input: maximum resolution 3840×2160@30Hz

4. USB output: maximum resolution 1920×1080@30Hz;

5. Video output format: YUV, JPEG;

6. Audio output format: L-PCM;

7. Input cable distance: ≤15m, AWG26 HDMI-compatibleI standard cable;

8. Audio and video capture: in line with UVC (USB video class) and UAC (USB audio class) standards;

9. Maximum working current: 0.4A/5V DC;

10. Working temperature: -10-55 degrees Celsius;

11. Dimensions (length x width x height): 63x28x13 (mm);

12. Weight: 22g;

Connection instructions:

1. Use an HDMI-compatible cable to connect the UHD signal source to the HDMI-compatible input of video capture.

2. Use a USB cable to connect the computer to the USB port of the video capture.

3. USB video capture (OBS) operation steps: open the software → select the source "+" sign → "video capture device"

-Set the image size-select "Studio Mode"-select "Start Recording".

packing list:
1 HDMI-compatible capture card,
1 product manual
