miniDSP EARS Calibrated USB Measurement Test Jig for Headphones

Finally, an extremely affordable USB-based measurement rig for headphones and in-ear monitors.

Key Features:

• Plug and Play USB audio streaming for Windows, Mac and Linux
• No external power supply required
• Affordable headphone test jig

miniDSP EARS Calibrated USB Measurement Test Jig for Headphones

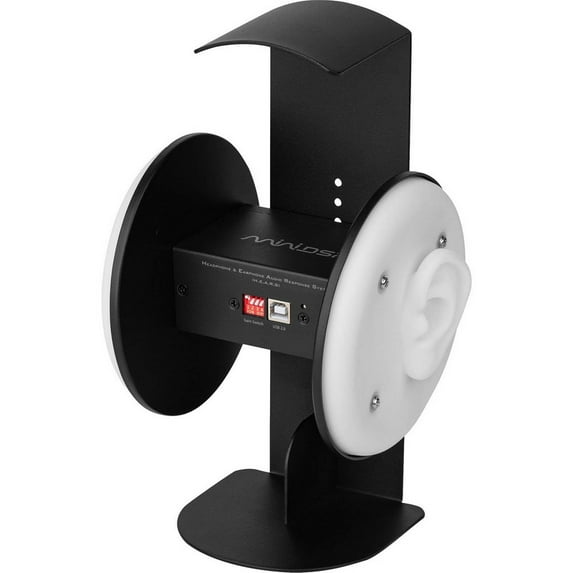

Introducing "EARS", the Earphone Audio Response System. miniDSP EARS brings headphone measurement capability to everyone - it's just an extremely affordable measurement rig for headphones and in-ear monitors that was built using the same technology as the extremely popular UMIK-1 calibrated measurement microphone. EARS can also be used as a binaural microphone with USB audio streaming.

Each pair of EARS has two microphone capsules mounted in a "dummy head". Measurement output is via the driverless USB connection. The EARS are powered from the USB so there is no need for an external power supply. To measure headphones, just mount your headphones on the rig and run a measurement sweep using your headphone amp and favorite measurement program. The supplied calibration file corrects for the response of the microphone capsule and the ear. The miniDSP EARS is the perfect tool for creating EQ filters for the miniDSP HA-DSP headphone amplifier or for any other headphone system with EQ capability.

NOTE: Please note that EARS is not an industry-standard measurement head. Even expensive test jigs can produce measurements that are different to each other depending on the type of ear simulator.
