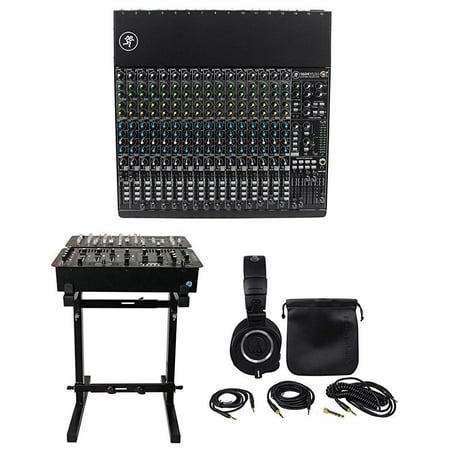

mackie 1604vlz4 16-ch compact analog mixer w/ 16 onyx preamps+stand+headphones

Model: 1604VLZ4+RXS20
$1009.99$1009.99
Only 4 left!
  • Available Options: Walmart Protection Plan.
Free delivery

Arrives by Wed, Feb 26

Or get it by Mon, Feb 24 with faster delivery

Pickup not available

Sold & shipped byAudiosavings

About This Item

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
each generation of vlz mixers benefits from a reinvestment in performance, allwithout raising prices. by continuing to ignore the race to the bottom, vlz4benefits from generations of performance improvements like transparent eq,class-leading negative summing bus architecture and custom-designed op-amps toensure signal integrity from every input to every output. the result is a mixerthat is at the peak of performance and is the obvious go-to compact analog mixerfor engineers who demand professional results.

features:

new mackie 1604vlz4 16-channel compact mixer
16-channel mixer featuring mackie signature high-headroom/low-noise design
16 boutique-quality onyx mic preamps
ultra-wide 60db gain range
128.5 db dynamic range
+22 dbu line input handling
extended frequency response
distortion under 0.0007% (20hz - 50khz)
60mm long-wearing log-taper faders
control room / phones multi-input source matrix
high-resolution 12-segment stereo meters
rockville rxs20 heavy duty mixer stand
universal with any mixer up to 300 lbs!
collapsOle for maximum portOility and easy storage
adjustOle width (13.8 - 23.6 inches) making this universal for any mixer and other gear
adjustOle height from 24 - 36 (inches)
steel stand with sturdy arms
large enough for mixers, dj gear, keyboards, and more
load capacity: 300 lbs
14.5 lbs (portOle and light-weight)
audio technica ath-m50x over ear professional studio monitor collapsible headphones
advanced build quality and engineering
type: closed-back dynamic
driver diameter: 45 mm
magnet: neodymium
voice coil: copper-clad aluminum wire
frequency response: 15 - 28,000 hz
maximum input power: 1,600 mw at 1 khz
sensitivity: 99 db
impedance: 38 ohms
weight: 285 g (7.8 oz), without cOle and connector
SKU:ADIB01LZHSYQQ

Package Includes:

(1) Mackie 1604VLZ4 16-channel Compact Analog Low-Noise Mixer
(1) Rockville RXS20 Portable Mixer Stand
(1) Audio Technica ATH-M50X Over Ear Professional Studio Monitor Headphones

Video of 1604VLZ4:

Features:

New Mackie 1604VLZ4 16-channel Compact Mixer
16-channel mixer featuring Mackie signature high-headroom/low-noise design
16 boutique-quality Onyx mic preamps
Ultra-wide 60dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20Hz – 50kHz)
Phantom power for studio condenser mics
Improved RF rejection perfect for broadcast applications
Phantom power for condenser mics
16 high-headroom line inputs with +4/-10 operation control
16 balanced inserts perfect for integrating outboard gear
3-band EQ with sweepable midrange
18 dB/oct 75Hz low-cut filter on mic input channels
4 aux sends, level, pan, solo and overload/mute LEDs on each channel
4 stereo returns, 8 direct outs and 4 group/bus outputs
60mm long-wearing log-taper faders
Control room / phones multi-input source matrix
High-resolution 12-segment stereo meters
Sealed rotary control resist dust and grime
“Built-Like-A-Tank” rugged steel chassis with powder-coat finish
High-visibility, high-contrast controls deliver convenient “at-a-glance” visualfeedback
Rack-mountable design with three physical configurations via Rotopod accessory(sold separately)
Multi-voltage power supply for worldwide use

Details:
Main Mix Noise (20 Hz–20 kHz bandwidth, 1/4" main out, channel gains @ unity,
channel EQs flat, all channels assigned to main mix, odd channels
panned left, even channels panned right.)
Main mix fader unity, channel faders down: –88.5 dBu
(92 dB Signal to Noise Ratio, ref +4 dBu)
Main mix fader @ unity, channel faders @ unity: –82.5 dBu
Total Harmonic Distortion (THD) (1 kHz @ 35 dB gain, 20 Hz–20 kHz bandwidth)
Physical Properties (product)
Height 17.0 in / 433 mm
Depth 5.1 in / 129 mm
Width 17.3 in / 440 mm
Weight 20.0 lb / 9.1 kg
Physical Properties (packaged product)
Height 9.3 in / 236 mm
Depth 20.7 in / 526 mm
Width 21.3 in / 541 mm
Weight 24.0 lb / 10.9 kg

Video of RXS20:

Unboxing Video of RXS20:

Features:

Rockville RXS20 Heavy duty mixer stand
Universal with any mixer up to 300 LBS!
Collapsable for maximum portability and easy storage

Features of ATH-M50X:

Audio Technica ATH-M50X Over Ear Professional Studio Monitor CollapsibleHeadphones
Advanced build quality and engineering
Critically acclaimed sonic performance praised by top audio engineers and proaudio reviewers

Specifications

Brand
mackie
Model
1604VLZ4+RXS20
Manufacturer Part Number
1604VLZ4+RXS20
