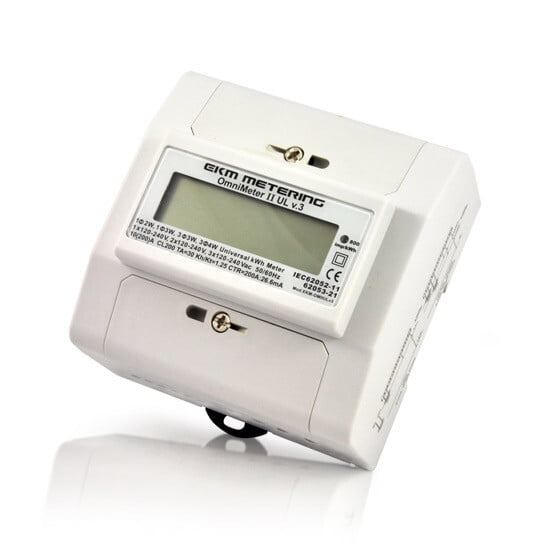

UL Listed EKM Omnimeter II v.3 Universal Smart SubMeter RS-485 Modbus Meter #25

UL Listed EKM Omnimeter II v.3 Universal Smart SubMeter RS-485 Modbus Meter

This is the newest addition to our meter product line, the Universal OmniMeter II v.3 UL accurately meters all electrical systems commonly used in the world--120V, 2-wire, single-phase through 240v, 3-phase 4-wire, 50Hz or 60Hz. Meter up to 5000A!

Supports current transformers (CTs) from 100A through 5000A. CT current rating is selectable internally in the meter so readout is always correct, no conversion factor or multiplier.

Reads kWh, Reverse kWh (for solar), Voltage on each line, Current on each line, Power (watts) on each line, Power Factor on each line, Maximum Demand, CT Ratio, 6 months of monthly reads stored on-board the meter with 4 TOU rates, 4 Times of day, 4 Seasons, Weekends and Holidays!! All readable and log-able via RS-485 and user friendly PC, Mac and Linux software.

Exceptional revenue grade accuracy: Class 0.5 (+/-0.5% over all but the very lowest end of the current range).

Built-in data storage and RS-485 Serial Communication for reading kWh usage remotely!

FREE PC, Mac, and Linux software to read the meter data remotely

Connect to your computer via 2-wire RS-485 --Easy to connect 2-wire, daisy-chained network!

Up to 50 meters can connect on over 4000 feet of wire to one EKM Push gateway.

Low-cost USB, Serial, and Ethernet converters available!

Each meter ships to you with it's own unique 12 digit network address

State of the art, solid-state, digital energy meter

LCD Display (required for revenue grade metering)

Compact, easy-to-install design

Monitor all critical circuits in your home or business

Pulse output--800 pulses per kWh

DIN-Rail mount

Not available anywhere else!! This is a completely unique product

Watertight and Interior Enclosures available

10 year warranty -- We will fix or replace these meters if there is a reliability issue within 10 years

This is a new kWh meter design manufactured by EKM Metering. It is the most advanced electronic KWH meter available on the market. Our Universal EKM-OmniMeter can meter any system that is commonly used in the world. It can accurately meter 50 or 60Hz, 120V through 240V, 1-phase or 3-phase, it is accurate to 0.5% and can meter up to 5000 amps. Installation is easy with external current transformers (CTs). However, installation should only be performed by a qualified electrician. This model requires 1 to 3 CTs, depending on your electrical system. Spec sheet/instruction manual included. Dimensions are approx. 4"w x 4"h x 2.5"d.

These meters have a non-resettable, 7 digit LCD readout with tenths, and read directly in kWh, no conversion factors as with some other electronic meters. These also have built-in data storage which is readable via a 2-wire RS-485 serial connection to your PC (connections A, B and G in the photo). In addition, they have a built-in pulse output, 800 pulses per kWh. They are perfect for remote and automatic meter reading (AMR) applications for sub-billing or measurement and verification (M&V).

Use these meters to measure and keep track of kilowatt hours and energy usage of sub-panels or individual pieces of equipment.
