2.9inch e-Paper Module 296x128 Resolution 3.3V/5V Black White Two-Color E-Ink Display Module Electronic Paper Screen for Raspberry P Arduino Nucleo Support Partial Refresh,SPI Interface

$71.98$71.98
Only 2 left!
Free delivery

Arrives by Monday, Mar 2

Pickup not available

Sold & shipped byBIT SHOP USA
<p><strong>2.9inch e-Paper Module 296x128 Resolution 3.3V/5V Black White Two-Color E-Ink Display Module Electronic Paper Screen for Raspberry P Arduino Nucleo Support Partial Refresh,SPI Interface</strong></p> <p><strong></strong></p> <p><strong>Brand : </strong>waveshare</p> <p><strong>Item model number : </strong>2.9inch E-Ink Display Module</p> <p><strong>Color : </strong>2.9inch E-Ink Display Module</p> <p><strong></strong></p> <p><strong>Product Information</strong></p> <p><strong></strong></p> <p><strong>- </strong>SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.</p> <p><strong>- </strong>Ultra low power consumption, basically power is only required for refreshing</p> <p><strong>- </strong>Onboard voltage translator, compatible with 3.3V/5V MCUs</p> <p><strong>- </strong>Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)</p> <p><strong>- </strong>No backlight, keeps displaying last content for a long time even when power down</p> <p><strong></strong></p> <br /> <p><strong></strong></p> <p> </p> <p> </p> <p><strong><b>296x128, 2.9inch E-Ink display module, SPI interface</b></strong></p> <p><strong><b>Overview</b></strong></p> <p><strong>This is an E-Ink display module, 2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.</strong></p> <p><strong>Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.</strong></p> <p><strong><b>Specifications</b></strong></p> <ul> <li><strong>Operating voltage: 3.3V/5V</strong></li> <li><strong>Interface: 3-wire SPI, 4-wire SPI</strong></li> <li><strong>Outline dimension: 89.5mm &times; 38mm</strong></li> <li><strong>Display size: 66.89mm &times; 29.05mm</strong></li> <li><strong>Dot pitch: 0.138 &times; 0.138</strong></li> <li><strong>Resolution: 296 &times; 128</strong></li> <li><strong>Display color: black, white</strong></li> <li><strong>Grey level: 2</strong></li> <li><strong>Partial refresh time: 0.3s</strong></li> <li><strong>Full refresh time: 2s</strong></li> <li><strong>Refresh power: 26.4mW(typ.)</strong></li> <li><strong>Standby power:&lt;0.017mW</strong></li> <li><strong>Viewing angle: &gt;170&deg;</strong></li> </ul> <p><strong><b>Package Content</b></strong></p> <ol> <li><strong>2.9inch e-Paper Module x1</strong></li> <li><strong>PH2.0 20cm 8Pin x1</strong></li> </ol> <p><strong><b>Note: 100% original from Waveshare, technical support is provided ,please contact us !</b><br /></strong></p> <p></p>

About This Item

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

2.9inch e-Paper Module 296x128 Resolution 3.3V/5V Black White Two-Color E-Ink Display Module Electronic Paper Screen for Raspberry P Arduino Nucleo Support Partial Refresh,SPI Interface

Brand : waveshare

Item model number : 2.9inch E-Ink Display Module

Color : 2.9inch E-Ink Display Module

Product Information

- SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/Nucleo, etc.

- Ultra low power consumption, basically power is only required for refreshing

- Onboard voltage translator, compatible with 3.3V/5V MCUs

- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

- No backlight, keeps displaying last content for a long time even when power down


296x128, 2.9inch E-Ink display module, SPI interface

Overview

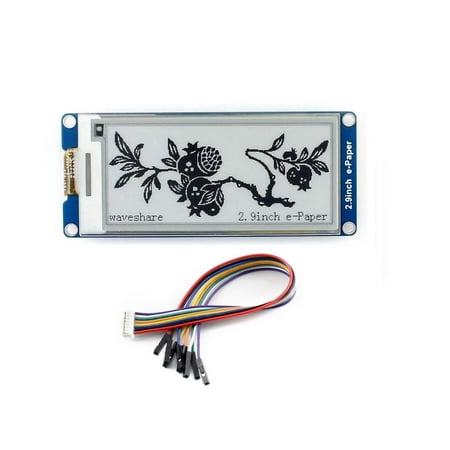

This is an E-Ink display module, 2.9inch, 296x128 resolution, with embedded controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Specifications

  • Operating voltage: 3.3V/5V
  • Interface: 3-wire SPI, 4-wire SPI
  • Outline dimension: 89.5mm × 38mm
  • Display size: 66.89mm × 29.05mm
  • Dot pitch: 0.138 × 0.138
  • Resolution: 296 × 128
  • Display color: black, white
  • Grey level: 2
  • Partial refresh time: 0.3s
  • Full refresh time: 2s
  • Refresh power: 26.4mW(typ.)
  • Standby power:<0.017mW
  • Viewing angle: >170°

Package Content

  1. 2.9inch e-Paper Module x1
  2. PH2.0 20cm 8Pin x1

Note: 100% original from Waveshare, technical support is provided ,please contact us !

2.9inch e-Paper Module 296x128 Resolution 3.3V/5V Black White Two-Color E-Ink Display Module Electronic Paper Screen for Raspberry P Arduino Nucleo Support Partial Refresh,SPI Interface
