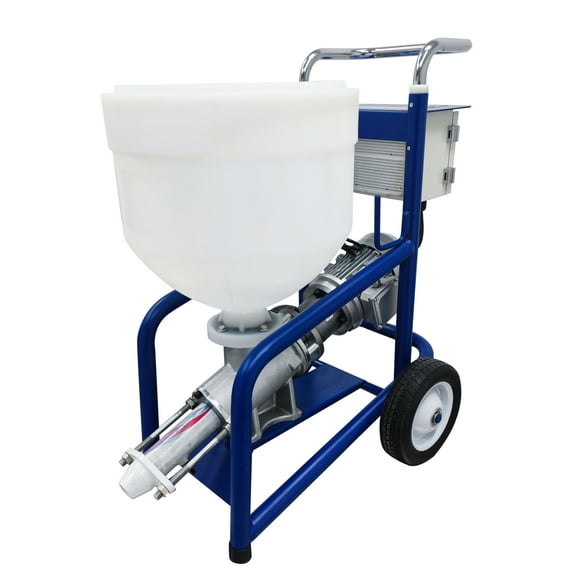

T3 Multifunctional Mortar Spraying Machine Putty Cement Grouting Spraying with 28L Hopper 220V

Introduction:
Multifunctional mortar spraying machine is suitable for real stone paint, sand in water, putty, caulking plaster, small day seed latex paint, leveling mortar, bonding mortar, diatom mud bomb coating, waterproof and fireproof and other materials. Different materials lead to different service life of the wearing parts of the machine, please know in advance.

Product parameter:
properties: DC brushless
Motor power: 1800W
Rated voltage: 220V
Minimum flow rate: 0.6L/min
Maximum flow rate: 12L/min
Maximum adjustable pressure: 12 KG
Randomly configured nozzles: 4, 6, 8
Random distribution pipe: 5 meters
Maximum conveying height: 5M
Burst pressure of feed pipe: 90KG
Hopper capacity: 28L

Operation Way:
1. Do not use this sprayer for the spraying of oily materials.
2. Connect the air pressure sensor to check whether there is air leakage at the connection part of the gas pipe (this machine is pneumatic induction control, air leakage will affect the sensitivity of the switch.
3. Before starting each time, please inject the mixed cooked rubber powder (or diluted real stone paint) into the hopper first. Start the cooked rubber powder or real stone paint from the other end of the high-pressure pipe can flow out. (Before this operation, please remove the nozzle to prevent the residual old material in the material tube from blocking the nozzle.
4. Plug in the power, switch to the automatic position, motor control the switch, and confirm that the switch indicates the automatic state.
5. After turning on the air source switch, slowly adjust the potentiometer switch clockwise, and reconfirm that the material pipe and the connecting parts are intact without leakage, then pour the normal use of real stone paint. When used, the speed should not be too fast, and the corresponding nozzle discharge amount is good enough for normal use, otherwise it will reduce the service life of the rubber sleeve screw.

Item Number:
1* T3 Putty Cement Grouting Spraying 220V (033297)
