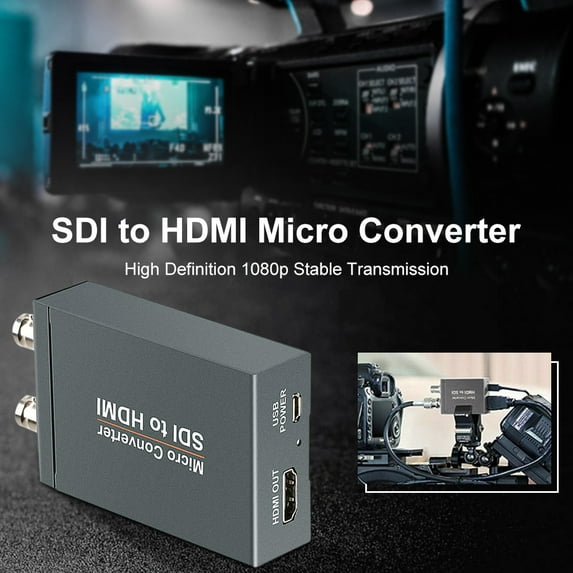

SDI to HDMI + SDI Mini HD Video Micro Converter 1 to 2 Audio Format Detection

100% Brand New and High Quality.
Shape/Colour: Same as the picture show

Introduction
The SDI to HDMI converter allows HD-SDI and 3G-SDI signals to be shown on HDMI displays while ensuring high bit rates of 2.970 Gbit/s to give you fast signal transmission without any loss. For professionals this means that it is now easier to distribute and extend your 3G SDI signal while giving you the ability to display your work on HDMI displays thanks to the built in HDMI converter.

Bullet Points:
1、The product features SD/HD/3G-SDI Input
2、The product features HDMI and SDI Loop Outputs
3、The product supports SD and HD Signals
4、The product features Automatic Input Signal Detection
5、The product features Software Control
6、Oftware Control,no need driver, plug and play,Update latest
firmware for best compatibility

Specificaitons
1. Input Port: 1 x BNC (HD-SDI/3G-SDI)
2. Output Port: 1 x HDMI
3. SDI Transmission Rates: 2.970 Gbit/s
4. In/Output Resolution: 720p\1080i\1080p
5. Power Supply: DC 5V
6. ESD Protection Human body model: ±8kV (air-gap discharge) ,±4kV (contact discharge)
7. Dimension: 97mm x 55mm x 23mm
8. Weight: 130g
9. Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
10. Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
11. Elative Humidity: 20 ~ 90% RH (Non-condensing)
12. Power Consumption (Max): 5W

Features:
SD/HD/3G-SDI Input
HDMI and SDI Loop Outputs
Supports SD and HD Signals
Automatic Input Signal Detection
Software Control

Package Includes:
1 x Mirco SDI to HDMI Converter
1 x USB Power Supply Cable
1 x Operation Manual
