RV Roof Vent Fan 14" with LED Light,4 Speed Reversible 12V RV Exhaust Fan Low Noise,UV Protection,Manual Open for Camper,Travel,Cargo Trailer

Product Description

Package Include:

• 1x RV Roof Vent With Light
• Some screw parts
• 1 x Instruction

4 SPEED REVERSIBLE RV ROOF VENT FAN 14" WITH LIGHT

4 Speed Reversible

UV Protection

LED Light Surround

Bidirectional Reversible Airflow

Quieter working with low noise

High Quality Brushless Motor

Install roof thickness:1 inch to 6-1/2 inch.

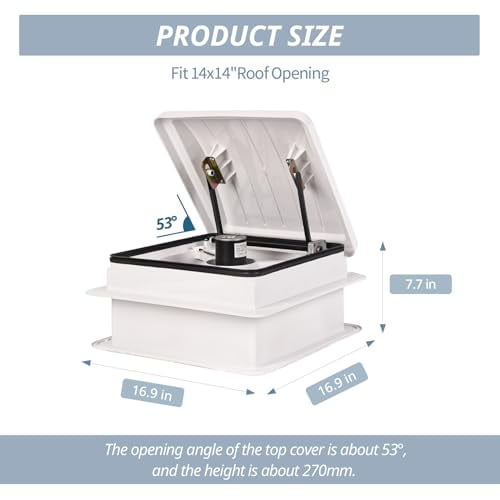

Opening size: 14 inch x 14 inch

LOWER NOISE

12V DC motor,ultra quiet work,below 70 decibels,effective ventilation above 60Pa,the trailer vent fan provides quiet and comfortable indoor space.

LED LIGHT & UV PROTECTION

With LED light, easy to operate at night and save energy.The RV fan is UV resistant, protects against UV rays while transmitting light.

4 SPEED ADJUSTABLE

Bidirectional ventilation, single-end suspension structure, using DC motor + deceleration mechanism + transmission system, wind speed infinitely adjustable speed control, adjust the size or direction of the air volume, so that people feel more comfortable environment.

INSTALLATION STEPS:

Step1: please remove the old existing roof vent and all old roof sealant for a minimum of 2"entirely around the roof opening.

Step2: Prior to installing the fan into the roof opening,apply a continuous strip of BUTYL tape or equivalent to the underside of the flange,making sure to cover the screw holes.

Step3: Using the insulated 16 gauge electrical connectors provided, connect the vehicle's 12volt power to the two fan power wires located on the driver side of the fan.

Step4: Insert the fan into the opening with the lid hinge facing the front of the vehicle and centering the fan in the opening. Make sure the power wires

slide to the interior and do not become entangled.

Step5: After the fan has been installed, remove the excess BUTYL caulk that may have squeezed out. Using a sealer apply a daub over every exposed screw head.

Step6: The interior Garnish Trim Ring must be trimmed to fit your particular RV roof thickness.

Step7: Complete the installation by placing any excess wiring to the inside of the roof opening and sliding the Garnish Ring into position.
