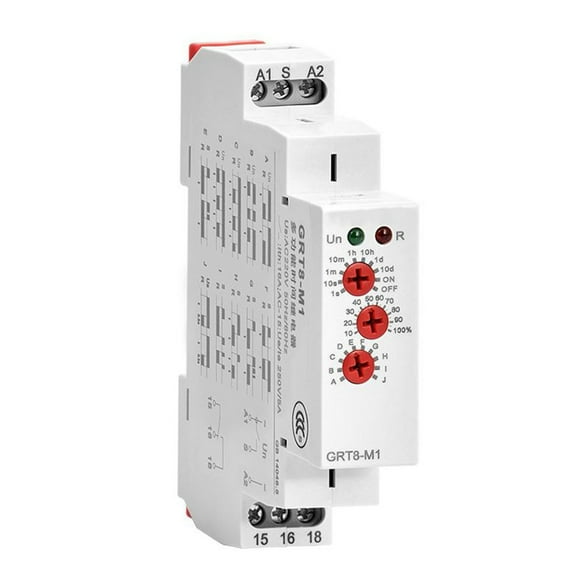

RANMEI Grt8-M1 Multifunction Time Relay With 10 Functions Din Delay Time Relay Ac 220V

Features:
Multifunctional time relay: The time relay has 10 different delay functions, including delay on, delay off, cycle delay, . The delay time can be adjusted via the control buttons and ranges from 0.1s to 10 days.
Flame retardant material: The small time relay is made of high-quality electronic components and flame retardant materials. It offers fast response, stable performance and safe use.
Easy installation: The working status of the time relay is displayed by the LED indicator and is clearly visible. Thanks to its ultra-small size, it can be installed on a 35mm DIN rail.
Versatile applications: This delay time relay can be used in industrial equipment, light control, heating element control, motor control, fan control, .
Customer service: We strive to provide you with the highest quality products and the best customer experience. If you have any questions about our time relay, please feel to contact us. We will give you a satisfactory answer.

Specification:
Part Name:Time Relay
Color: As show
Material:ABS
Model:GRT8-M1
Power Terminal:A1-A2
Rated Control Power Voltage:AC 220V 50Hz
Power Consumption:AC max.6VA/.3W
Power supply fluctuation range: -15%; +10%
Rated impulse withstand voltage: 2.5kV
Rated insulation voltage: 250V
Power indicator: green LED
Delay range: 0. seconds-10 days, normally open, normally closed
Setting way: knob
Setting accuracy: 10%
Repeat accuracy: 0.2%
Temperature fluctuation error: 0.05%/C, at=20℃
Output contact parameters: set of conversion contacts
Minimum switching power: 500mW
Output relay indication: red LED
Mechanical life: ×10^7
Electrical life (resistive load): ×10^5
Reset time: maximum 200ms
Working environment temperature: -20℃~+55℃
Storage and transportation environment temperature: -35℃~+75℃
Installation way: 35mm Rail installation
Protection level: IP20
Installation altitude: ≤2000 meters
Pollution level: 2
Wiring capacity: 1x2.5mm2 or 2x1.5mm2 0.4N.m
Size: 90mm×18mm×64mm
Weight: W240-62g, A230-62g
Standards: GB/T14048.5, IEC60947-5-, EN 61812-

Package Content:
*Time Relay
*manual
