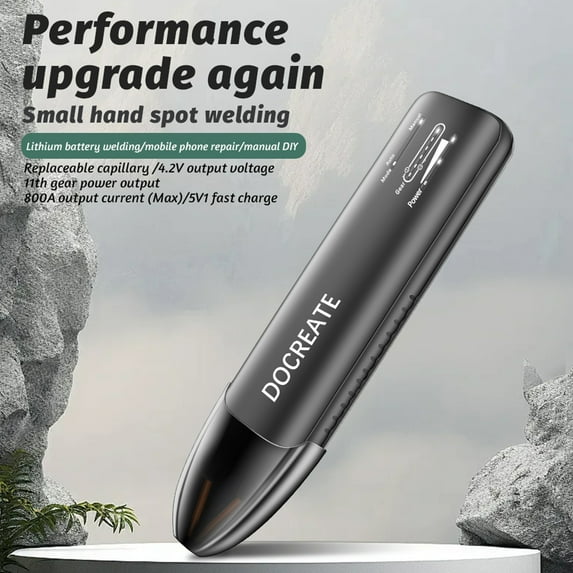

Portable Mini Spot Welder Tool DIY Battery Welding Machine 11 Gears Adjustable

Portable Mini Spot Welder Tool DIY Battery Welding Machine 11 Gears Adjustable

Feature:
1: The handheld spot welder does not require an additional spot welding pen and is convenient to carry with you wherever you go.
It combines a built-in power supply and a soldering pen into one, making it easy to weld without the need for an external soldering pen.
2: Suitable for 18650/26650/36650 and other cylindrical batteries, mobile phone batteries and electronic devices that require batteries.
The spot welding machine can be used for electronic equipment that has been damaged due to battery damage, and can be restored to
use after replacing the battery (similar to a handheld electric drill), saving money and environmental protection.
3: Easy to use - There are only 2 buttons, and the buttons of our spot welding machine are labeled, making them easy to use. The battery spot
welder does not need to leave the palm of our hands. Press and hold the side power switch button with your middle finger for 2 seconds, press
and hold the top gear adjustment button once with your index finger, and then hold it for 2 seconds to adjust automatic or manual mode.
4: 11 Adjustable Levels - This spot welder has 11 adjustable levels of output power, which can be adjusted according to the different
materials you spot weld. 1-3 gear cell phone batteries, 3-6 gear 0.1 mm nickel plate, 6-11 gear 0.12-0.15 nickel plate. It can spot weld
more than 200 times on a single charge.
5: Although it is a miniature handheld spot welder, it has high-quality polymer batteries, overcharge protection, temperature protection,
short-circuit protection, abnormal battery temperature alarm and spot welding shutdown function, and low battery voltage alarm.
Ultra-low power consumption, longer standby time.

Specifics:
Condition: 100% Brand New
Equipment settings: 11 levels adjustable
Spot welding method: automatic/manual gear
Product size: 43*25*192mm
Input interface: Type-C
Input parameters: 5v/1A (MAX)
Output voltage: 4.2V (MAX)
Output current: 650A (MAX)
Working temperature: -10~60℃
Charging temperature: 0~60℃

Note:
1.Please allow 1-3mm difference due to manual measurement.
2.Due to the light and screen difference, the item's color may be slightly different from the pictures.

Package Included:
1X Handheld spot welding machine
1X 2 meters nickel plate
1X 1 piece of matte paper
1X Type-c charging cable
1X User Manual
