Economical colorimeter series are economical models to measure the color difference. Instrument is with auto calibration to make it simple in operation. It contains 30 kinds of parameters and 26 kinds of illuminants. Two Apertures Version is with switchable apertures to measure samples with different sizes.
Part One. Instrument Advantages
6. Good repeatability for stable measurement (Delta E*ab 0.08)
7. Guarantee to pass the national metrology
Part Two. Technical Parameter
Model
Economical(Big Aperture)
Economical(Small Aperture)
Economical(Two Apertures)
Color
Green
Geometry
D/8 (diffused illumination,8 degree viewing)
SCI (specular component included),SCE (specular component excluded)
Repeatability
Chromaticity Value:
Standard deviation E*ab 0.04
Average :dE*ab 0.05
Max.:dE*ab 0.08
(when a white tile is measured 30 times at 5 seconds interval)
Inter-instrument Agreement
E*ab0.4
DisplayAccuracy
0.01
Test Aperture/
Illuminated Area
8mm/11mm
4mm/6mm
8mm/11mm,
4mm/6mm
Color Space and Indices
Reflectance, CIE-Lab, CIE-LCh, Hunter Lab, CIE-Luv, XYZ, Yxy, RGB, Color Difference (E*ab, E*cmc, E*94, E*00), Whiteness Index(ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), Yellowness Index(ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness Index(My,dM), Staining Fastness, Color Fastness, Tint(ASTM E313-00), Color Density CMYK(A,T,E,M), Metamerism Index Milm, Munsell, Opacity, Color Strength
Illuminants
A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84
Support Color Matching Software
No
Light Source
LED
Camera
NO
Calibration
Auto
Software
Windows
Accuracy guarantee
Pass National Metrology Level I
Observer
2°,10°
Sphere Size
40mm
Standard
Conform to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Spectroscopic Method
Integrated optics
Sensor
CMOSSensor
Wavelength interval
10nm
Wavelength Range
400-700nm
Reflectance Range
0-200%
Reflectance Resolution
0.01%
Reflectance Resolution
0.01%
Measurement Time
About 1second
Screen
IPSfull color screen ,2.4inches
Battery
Rechargeable, 8,000 times continuous tests, 3.7V/3000mAh
Light Source Lifetime
10years, 1 million tests
Language
Chinese and English
Storage
100 pieces of data
(Note: 1,CS-410/411/412 main difference is the aperture size and quantity 2,Illuminated area is the same as instrument aperture)
Part Three. Instrument Outlook

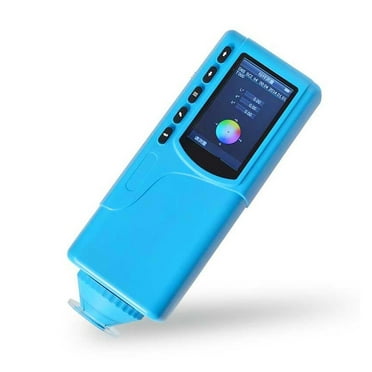

Economical(Big Aperture/Small Aperture)Outlook
Economical(Two Apertures )Outlook
