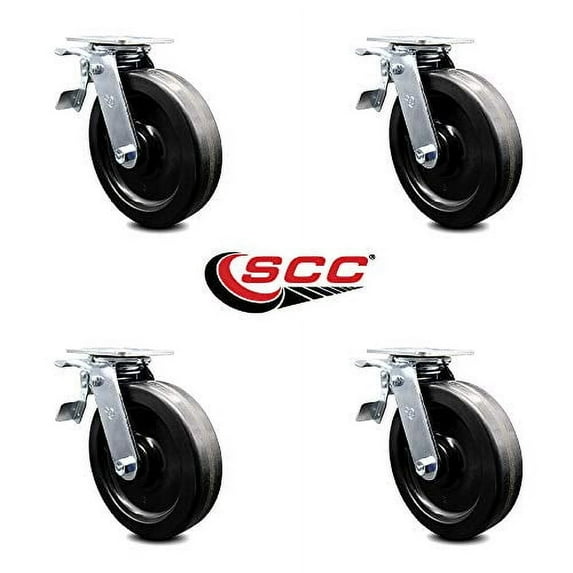

Phenolic Swivel Top Plate Casters Set of 4 Heavy Duty with 8 Inch Wheels - Includes 4 Swivel with Total Lock Brakes – 5,000 lbs. Total Capacity - Service Caster Brand

Product Description

The Service Caster Series #30 is ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Finishes are available in either zinc plating, which provides durability under any condition, or stainless steel, which resists rust and corrosion in indoor or outdoor applications where moisture is a factor. Mounting options include rigid or swivel top plate, with or without top lock or total lock brakes and bolt on swivel locks. All rolling on finely crafted double ball bearing heat treated raceways that keeps you moving forward.

SCC-30-PHR

About Service Caster

For over 25 years, Service Caster has been one of the largest caster and wheel companies in North America. We design, manufacture, assemble, and distribute casters worldwide from our location in West Reading, Pennsylvania. Trust us to assist you with selecting, designing, and integrating casters into your application. Choose from a wide range of casters and wheels designed for light to extra heavy duty use from our extensive catalog of over 200 brands, including the Service Caster brand.

Heavy Duty Phenolic Casters

Phenolic wheels are highly resistant to impact damage, providing protection for floors in commercial and industrial settings. Resistant to water, oil, and grease. Non-metallic and spark proof.

Attributes For Series 30 Phenolic Casters

• Wheels Sizes- 3.25", 4", 5", 6", 8"
• Brake Types- Top Locking, Total Locking, Bolt On Swivel Lock
• Attachments Types- Top Plate
• Finishes- Zinc Plating or Stainless Steel

Attachment & Brake Options

Top Plate

Provides the utmost stability by supporting the caster at four points. Available in rigid and swivel, with optional top lock or total lock brakes.

Top Lock Brake

Top Lock Brake (TLB) places a positive locking force against the top tread of the wheel to securely hold heavy loads.

Total Lock Brake

Total Locking Brake (TTL) solidly locks both the swivel and wheel, providing an exceptionally sturdy base when engaged.

Bolt On Swivel Lock

BSL pull ring engages the spring-loaded bolt into one of 4 notches found on the swivel raceway, instantly converting a swivel caster to rigid for straight-line tracking at any 90 degree angle.

Other Series 30 Wheel Types

Polyurethane on Polyolefin

Polyurethane casters feature a non-marking polyurethane tread on a polyolefin core wheel, providing a smooth roll over uneven surfaces without marking or marring floors.

Other Series 30 Wheel Types

Nylon

Nylon wheels provide very low rolling resistance, show a high resistance to many aggressive substances and under normal operating conditions are maintenance free.

Other Series 30 Wheel Types

Polyurethane on Aluminum

Polyurethane wheels that are chemically bonded to an aluminum core, providing a smooth roll over uneven surfaces without marking or marring floors.

Other Series 30 Wheel Types

Phenol
