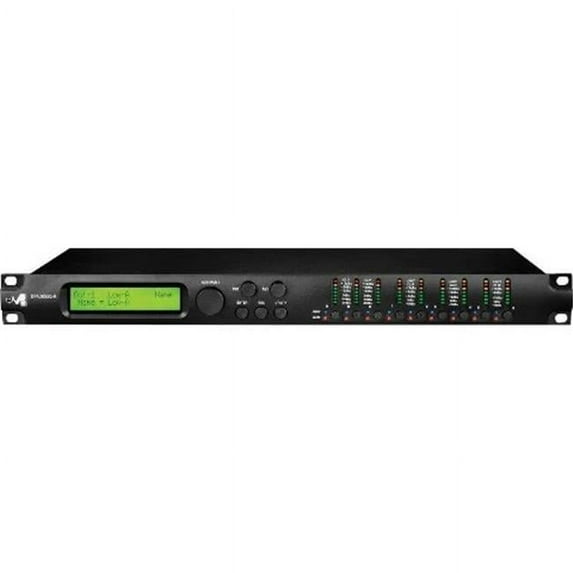

Marani 3-Input - 6-Output Matrix Speaker Processor

The Marani 3-Input - 6-Output Matrix Speaker Processor is a high-quality audio processor designed for professional use. With XLR balanced inputs and outputs, this processor delivers exceptional sound quality with a minimum load of 150ohm. It features user memories and recall memories, allowing you to save and easily access your preferred settings. The VU metering has 7 LED lights for Inputs, displaying levels from -20dBu up to +15dBu and Clip. The S/N ratio is greater than 110dB, and the frequency response is 20Hz-20kHz, with -0.5dBu at 20Hz and 20kHz. The A/D and D/A resolution is 24 bits, and the process resolution is 24x32 bit for filtering process, with 96 bits resolution on process. It provides up to 24dBu/Oct HP/LP, +15dB gain Bell and Shelving filters, and RMS compressor/limiter with attack time from 5ms up to 200ms (1ms resolution up to 20ms). The 7 LED lights for Outputs display levels from -20dBu up to +15dBu, with Clip and Limit. The Output Leeds can be used for displaying the Output level OR the Limiter activity.

• Inputs: XLR balanced
• Outputs: XLR balanced
• Minimum Load: 150ohm
• User memories: 24
• Recall memories: 24
• VU metering: 7 LED for Inputs [-20dBu up to +15dBu; Clip]
• S/N: >110dB
• Frequency Response: 20Hz-20kHz ; -0.5dBu at 20Hz and 20kHz
• A/D and D/A Resolution: 24 bits
• Process Resolution: 24x32 bit for filtering process; 96 bits resolution on process

• Up to 24dBu/Oct HP/LP
• +15dB gain Bell and Shelving filters
• RMS compressor/limiter [Attack time from 5ms up to 200ms (1ms resolution up to 20ms)]
• 7 LED for Outputs [-20dBu up to +15dBu; Clip; Limit]
• Output Leeds can be used for displaying the Output level OR the Limiter activity
• Brand: Marani
