Hole Drilling Machine Portable Line Boring Machine for Engineering Machinery 110V

Introduction:

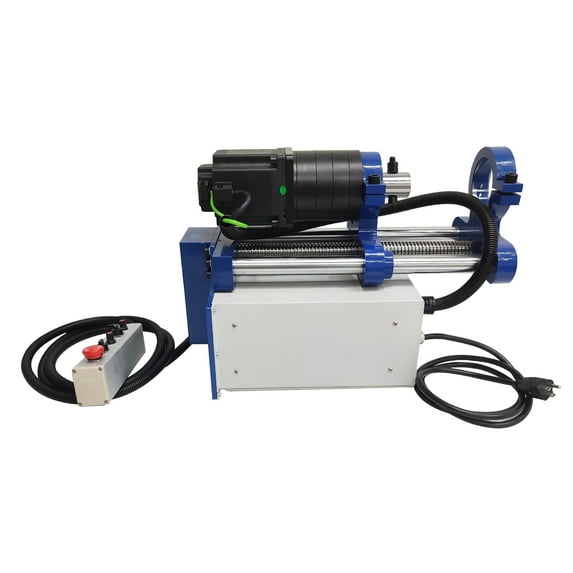

Hole drilling machine for engineering machinery is a portable processing equipment developed for field service of engineering machinery, which is mainly used in processing of small-scale pipeline inner hold and concentric span hole, and widely applied in engineering machinery , including excavator, crane, loder, and hoist. Only one person is required for operation,and the actual operation difficulty greatly reduces for its focus on field in design concept and processing to make serviceman handier with the machine.
Main application scope: processing after repair welding, or bushing installation after holes pansion of rotation hole, hinge joint hole, and hinge pin hole in all engineering machines; repair and processing of concentric hole in Escavator, loader, pressure machine, crane. etc; and multiple holes lying alongside to conduct dispossable positioning processing to multiple holes to ensure the Coaxiality of these holes.

Product features:

1 Driving of hole drilling machine.By adopting 110V AC servo motorwith characteristics of low-speed of revolution and high torque, the complete machine can realize stationary machining in superior performance.
2 No vibration in end travel and cutting process.
3 Feeding and processing can realize elect rode less speed regulation. Feeding process can be set according to demands, and processing can automatically stop after reaching the Innit switch.
4 Boring bar adopting high-strength alloy and structural st eels featured with high hardness, high accuracy, high tenacity, good abrasion resistance, etc.
5 In effective travel, the tool rest can be fixed at any position of boring bar.
6 The boring bar can be disassembled separately to make installation.
7 ELectric motor controller is equipped with immediately brake program to Avoid vibration in shut down
8 The control Cabinet is installed below the main engine to be beneficial to safety operation.

Parameter:

The maximum processing hole diameter: 80mm
The minimum processing hole diameter: 35mm
The maximum processing travel: 300mm
The maximum feed depth: 5mm on one side (A3steel)
Surface roughness: Ra3.2
Deviation form circular form<0.02mm
Gross weight of equipment: 98KG
Power supply: 110V60Hz
Voltage: 1500W
Boring bar length: 1600mm
Diameter: 30mm

Item Number: 022780

Host * 1
Remote control * 1
Boring bar * 1
Centering cone * 2
Knife holder * 1
Knife disc * 1
Bracket * 2
Support bolt * 8
Support bolt and nut * 16
Knife handle * 1
Blade * 2
White steel knife * 1
Wrench * 1
One set of hexagonal wrenches
Spare screws * 1 pack
