Product Feature:
1. Fitment: Fit for Caterpillar 3406E, C-15 and C-16. And Engine Barring Socket is compatible with CAT 3200/3406
Series C13/C15/C16/3208/3400/3406e/3508/3512/3500.
2. Material: The Injector Timing Fixture is constructed from high standard Aluminum Alloy, solid and sturdy. The
Barring Socket is machined from high quality 42CrMo Steel. Both of them are good in resisting rust and corrosion
with powder coated.
3. Function: The Injector Timing Fixture help to prevent screw rotation and complete timing with effortlessly rotate
the engine. The Engine Barring Socket replaces 6749 Engine Barring/Turning Socket – A direct replacement for
J-38587-A Caterpillar 9S9082 0508477 (Replaces Part Number: ENL80-0054 & 9S9082).
4. Easy To Use: Put the Injector Height Tool on the injector to accurately adjust the Injector Height of the engine;
Well-designed barring socket meshes great with every tooth on the flywheel.
5. A Must Have: Alternative to Caterpillar 9S9082 and 9U-7227. Injector height should be properly maintained if
maximum performance and economy are to be obtained.
Product Description: Engine Barring Socket
Well-designed barring socket meshes great with every tooth on the flywheel, perfectly finishing the job.
Replacement: 6749 Engine Barring/Turning Socket - A direct replacement for J-38587-A Caterpillar 9S9082 0508477.
Designed to rotate engine on a Mack E7, CAT C13, Cat 3208, cat 3406e and so on.
Easy Using: Operate simply, direct replacement and using.
Height Tool Diesel Engine Injector Timing Fixture
Application: ATC 9U7227 for Caterpillar injector timing fixture for the CAT 3406E Comparable to CAT # 9U-7227.
Injector Height Adjustment Tool is Easy & Convenient to use
Just put our Injector Height Tool on the injector, then you will get exactly 78 mm height on the injector!
The height adjustment tool for the fuel injectors has 2 steps to adjusting the injector height after you finish the valve
adjustments
1. Injector Height Adjustment Tool is used in order to obtain a dimension of 78.0 ± 0.2 mm (3.07 ± 0.01 inch).
The dimension is measured from the top of the unit injector to the machined ledge of the fuel injector body.
2. Tighten lock-nut to a torque of 100 ± 10 N·m (74 ± 7 lb ft).
How to Use:
1. Turn unit injector adjusting screw clockwise until the correct height is obtained.
2. Hold the adjusting screw in this position and tighten locknut.
Package Including:

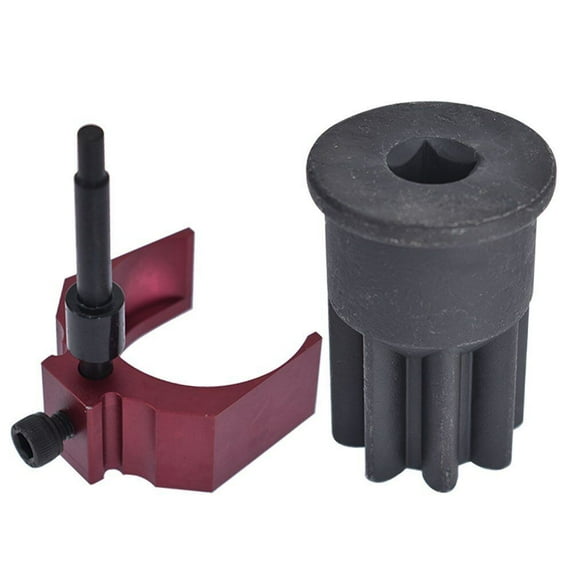

1Pcs Diesel Engine Injector Timing Fixture (Red)
1Pcs Engine Barring Socket (Black)
