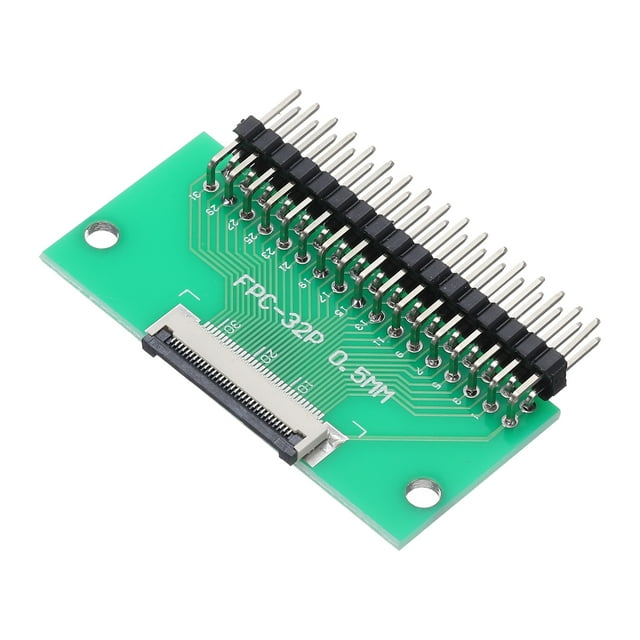

FFC FPC Connector Board 32 Pins 0.5mm Socket to 2.54mm Double Row Right Angle Pin Header Strip Adapter

What is this?
FFC/FPC Connectors are used to connect flexible cables or flexible printed circuit boards in electronic equipment, to provide reliable electrical connection and mechanical fixation, and are suitable for applications requiring high flexibility and compact design. Mainly used in various digital communication products, portable electronic products, computer peripherals, measuring instruments, automotive electronics, and other areas, such as digital cameras, laptops, MP345, game consoles, etc.

Are there any advantages of the product?
1. It usually has the characteristics of low insertion force and a high rate number of insertion and extraction.
2. It can provide high-density signal transmission and circuit connection in a limited space.

How to use it?
1. Flip-up the black interface ; 2.Insert into your flat cable(here is not included); 3.Test to finish.

What should I notice?
All dimensions above are measured manually, please allow +/-0.1 inches error.
