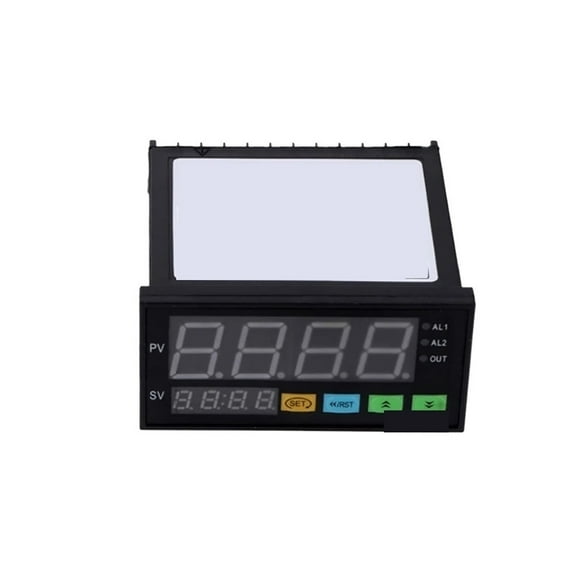

Digital Weighing Controller LED Display Weight Controller 1-4 Load Cell Signals Input 2 Relay Output 4 ,High Accuracy

1. Input: directly connected to the weighing sensor or other force measuring sensor, fast response, high precision, stable measurement, with adjustment functions such as tare weight reset, display correction, start\stop, fast forward\slow forward\, etc., simple operation, can be used for quantitative/batching weighing control, can be used for accumulation/average calculation, used for batch addition and subtraction control.

2. Optional input: can be directly connected to one or four weighing (force measuring) sensors, other signals such as 4-20mA 0-10V need to be customized.

3. Analog output can be configured: isolated current transmitter output 4-20mA or 0-10V, output range can be set arbitrarily

Contact output: up to 3 various batching control outputs, set by the user, used for various batching and force measurement control, complete functions;

4. External isolation sensor power supply, 5v/80ma, etc.

5. Accuracy above 0.2%: 4 digits, 0-9999, floating decimal setting

6. Transformer power supply: AC
