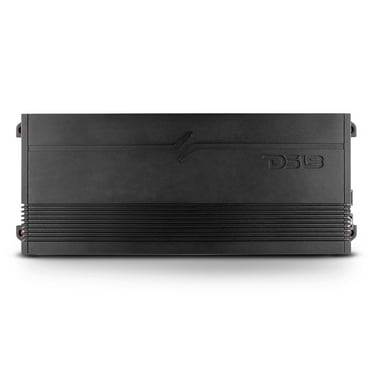

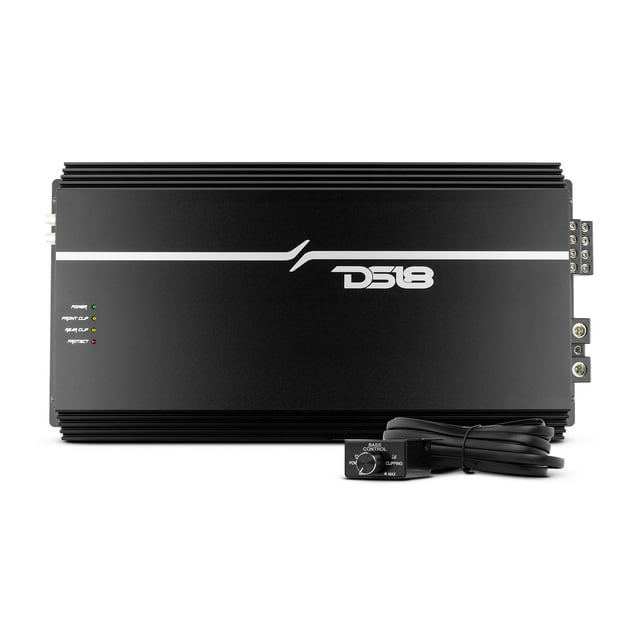

DS18 EXL-P2000X4 4-Channel 75 Watts RMS Class A/B Car Amplifier

Overview

The DS18 EXL-P2000X4 is a high-performance 4-channel Class A/B car amplifier engineered to deliver robust power and exceptional audio clarity for car audio enthusiasts. Manufactured in Korea with premium components and optimized circuitry, this amplifier ensures maximum efficiency and reliability, enhancing your in-car audio experience.

Features:

• High RMS Power Output: 275W x 4 channels at 4 Ohms, 500W x 4 channels at 2 Ohms, 1000W x 2 channels bridged at 4 Ohms


• Optimized Korean Circuitry: Utilizes premium components for enhanced performance and durability


• Advanced Filtering Options: Adjustable Low Pass Filter 50Hz2kHz, 0180-degree phase selector, Bass boost adjustable from 0 to +9 dB


• User-Friendly Controls: Includes a bass knob with power and clipping indicators for real-time monitoring


• Wide Voltage Range: Operates efficiently between 9V to 15.5V


• Robust Build: Features a strong heatsink casing and thermal protection circuitry to maintain optimal operating temperatures

Specifications:

• Frequency Response: 20Hz20kHz


• Signal-to-Noise Ratio: 98dB


• Efficiency at 4 Ohms: 65%


• Damping Factor: 180


• Total Harmonic Distortion THD: <0.10%


• Low-Level Input Range: 200mV6V


• Selectable Crossover: Yes, HPF/FULL/LPF


• Bass Boost Frequency: 30Hz60Hz


• Amplifier Class: AB Analog


• Minimum Impedance: 2 Ohms per channel 4 Ohms bridged


• LED Indicators: Power / Clip / Protect


• Power Input Size: 4 AWG


• Fuse Rating: 200A

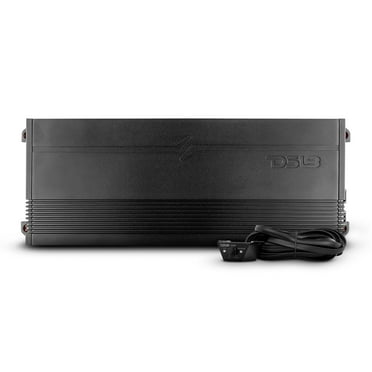

• Remote Level Control: Yes, dash mount included


• Cooling Fan: Yes


• Protection Features: Thermal, Over-Load, DC Output, Short Circuit, Voltage Input, Clipping


• Dimensions L x W x H: 17.4 x 8.77 x 2.67 inches 442 x 223 x 68 mm


• Heatsink Length: 15.75 inches 400 mm
